WINKHAUS Scorpion Lever Operated Latch & Hookbolt Gearbox
WINKHAUS Scorpion Lever Operated Latch & Hookbolt Gearbox
Regular price
£79.78
Regular price
Sale price
£79.78
Unit price
per
Tax included.
Shipping calculated at checkout.
Type : Winkhaus
SKU : L32607
Availability : Out Of Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.
We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.
Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

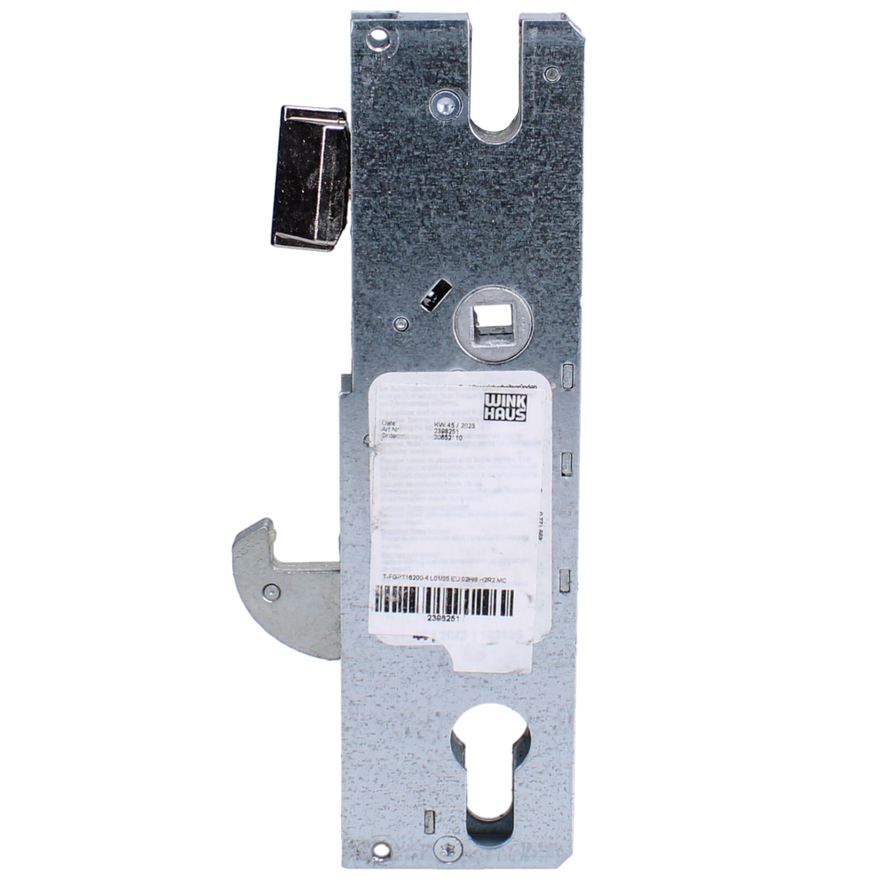

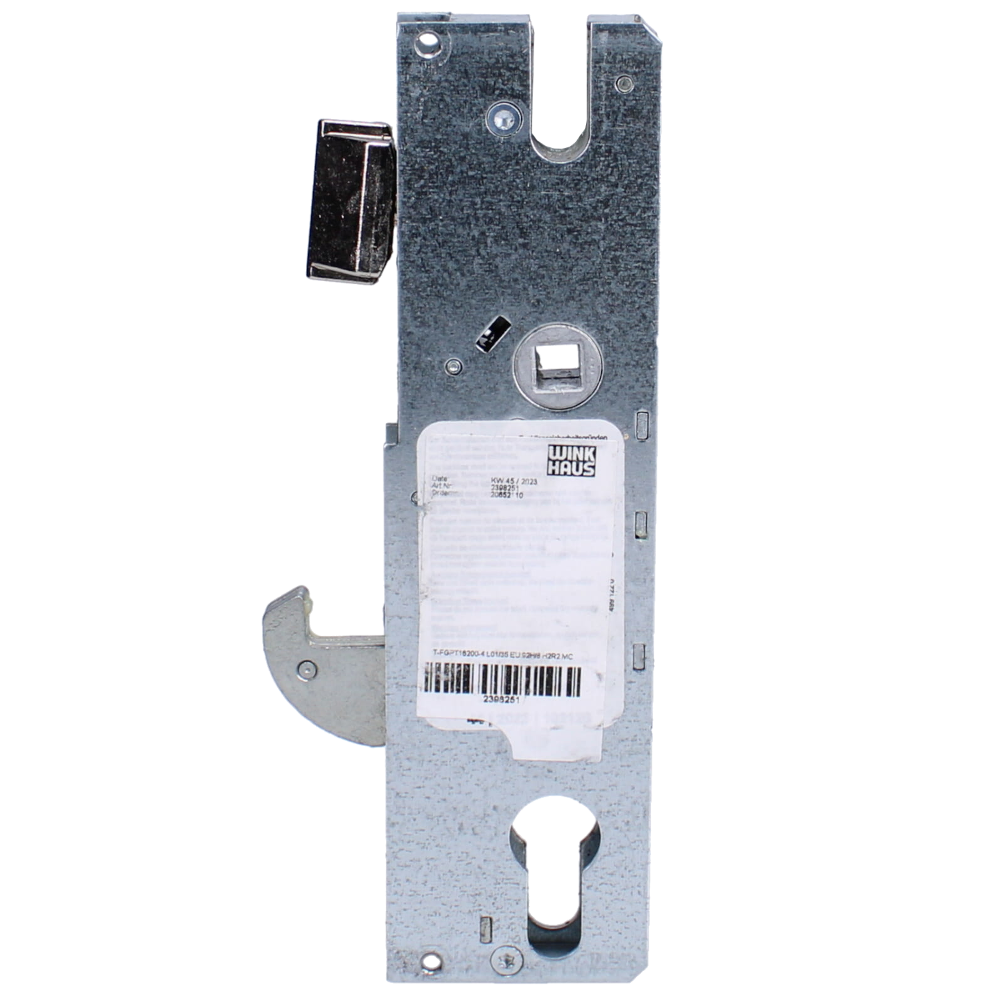

The WINKHAUS Scorpion Lever Operated Latch & Hookbolt Gearbox has 35mm backset, 92mm centres, is split 8mm spindle, 185mm case height and has 50mm case width.
Winkhaus gearboxes are fixed to the faceplate using rivets rather than screws. This allows the rivets to be removed and replaced when carrying out a gearbox swap, while also making Winkhaus products easy to identify.
Ideal for locksmiths and trade professionals, it offers a cost effective solution for repairing or refurbishing existing door systems without needing to replace the entire strip.
Identification
Winkhaus gearboxes are fixed to the faceplate using rivets rather than screws.
Handing
The latch can be reversed by placing a screwdriver in the rear of the case directly behind the latch. Push the latch forward and rotate it to the opposite hand.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.
Winkhaus gearboxes are fixed to the faceplate using rivets rather than screws. This allows the rivets to be removed and replaced when carrying out a gearbox swap, while also making Winkhaus products easy to identify.
Ideal for locksmiths and trade professionals, it offers a cost effective solution for repairing or refurbishing existing door systems without needing to replace the entire strip.
Identification
Winkhaus gearboxes are fixed to the faceplate using rivets rather than screws.
Handing
The latch can be reversed by placing a screwdriver in the rear of the case directly behind the latch. Push the latch forward and rotate it to the opposite hand.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.
Key features
- Split spindle
- 35mm backset
- Centre gearbox only
- Latch & Hookbolt
Specification
- Backset: 35mm
- Case Height: 185mm
- Case Width: 50mm
- Centres: 92mm
- Pack Quantity: 1
- Spindle: Split 8mm
