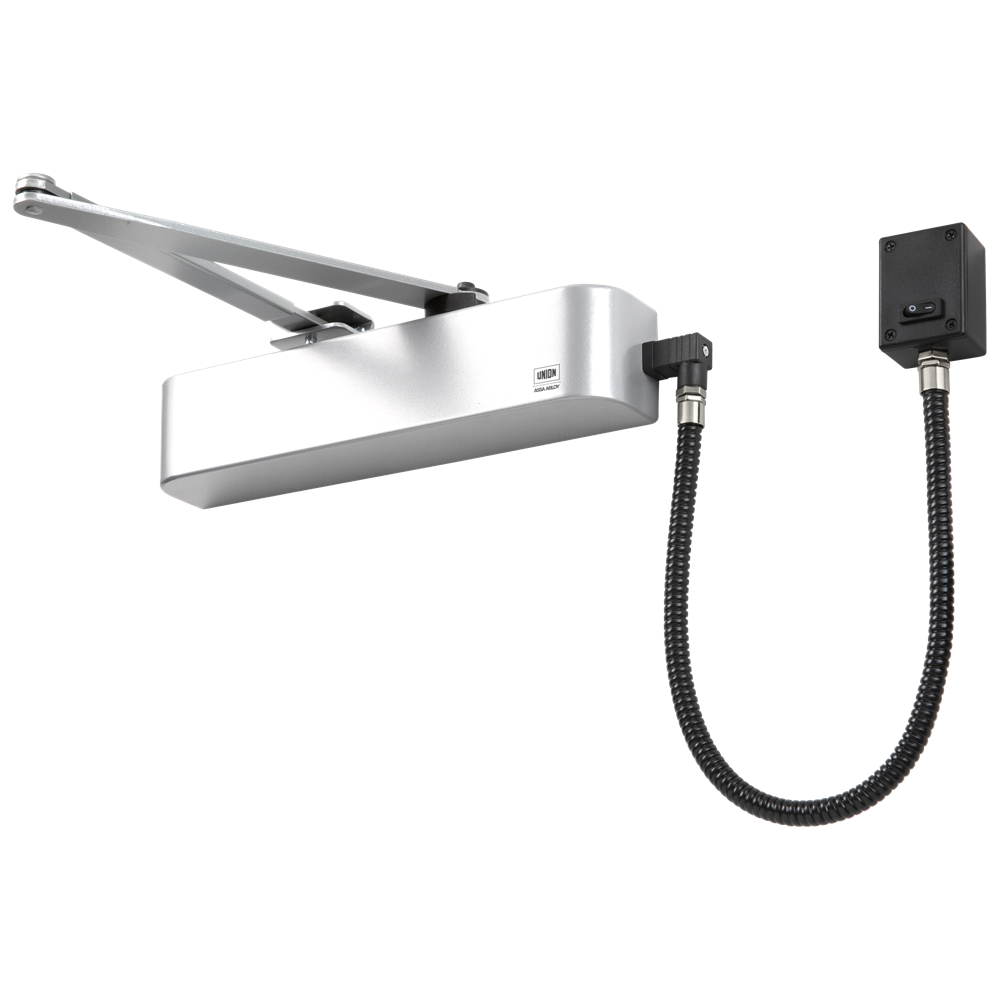

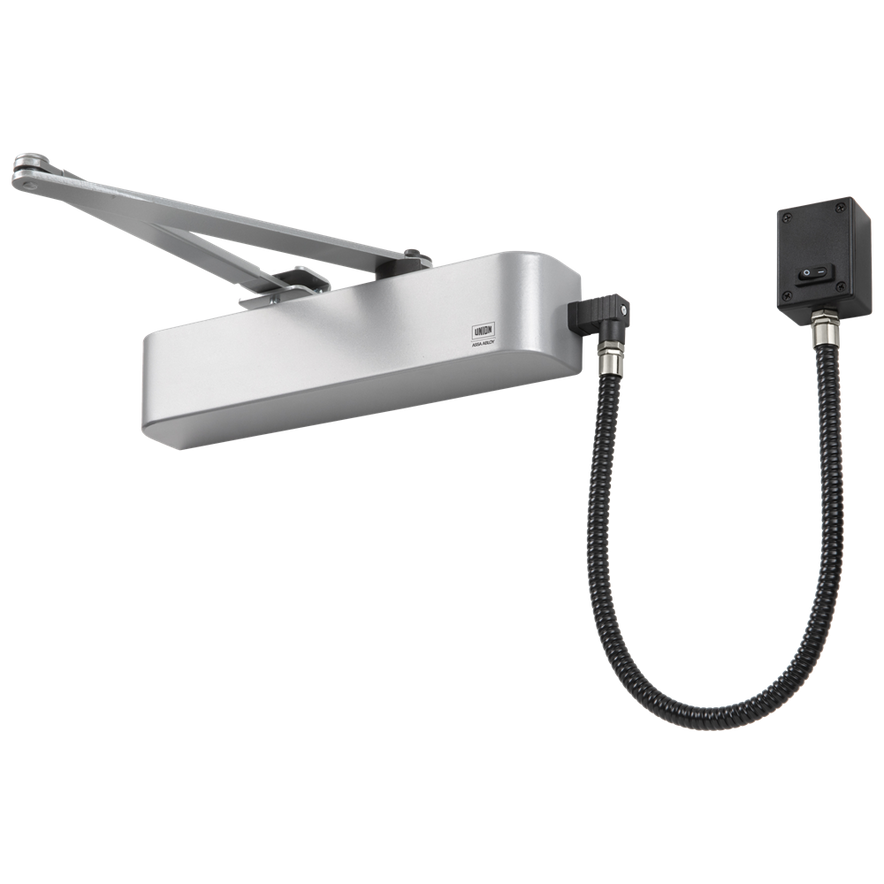

The Union CE4F-E electromagnetic door closer is a dual-function solution that can be set to one of two modes: hold-open or free swing. When in hold-open mode, the CE4F-E allows people to walk through the doorway without opening the door, offering the ultimate barrier-free solution. This makes it ideal for hospitals, hotels, theatres and other high-traffic public areas. By removing the need for physical contact, it also reduces the spread of germs – a consideration that is increasingly in demand following the outbreak of Covid-19.

Alternatively, in free-swing mode, the door operates as though no closer is fitted. This allows the door to swing freely with little force required to open it; suitable for the needs of residential bedroom doors in care homes, for example.

Both modes provide assured fire safety, should an incident arise. The CE4F-E complies with the demands of BS EN 1155 by connecting to a building’s fire or smoke alarm system. In the event of a fire, power is cut to the unit, allowing it to automatically close and stop the spread of fire and smoke.

This size 4 closer has a detachable loop, enabling electrics and installation to be completed separately, and adjustable closing speed, adjustable latching speed and a 2 year guarantee.

Key features

• Certifire tested to FD120 for timber doors and FD240 for steel doors
• Fixed power size 4
• Detachable loop, enabling electrics and installation to be completed separately
• Efficient cam and roller mechanism for ease of use
• Easy to fit & CE marked
• Suitable for fitting in figure 1 and figure 66, without affecting the power size

Specification

• Backcheck: No
• Depth: 52mm
• Finish: Satin Stainless Steel
• Fire Tested: CERTIFIRE approved for fire doors
• Guarantee: 2 Year
• Handed: Reversible
• Input Voltage: 24V DC
• Length: 29.5cm
• Max Door Weight: 80Kg
• Max Door Width: 1100mm
• Pack Quantity: 1
• Packaging: Boxed
• Standards: Certifire,CE Marked
• Strength Size: 4
• Adjustable Latch Action: true
• Delayed Action: N
