MILA Lever Operated Latch & Deadbolt - Centre Case 35/92
MILA Lever Operated Latch & Deadbolt - Centre Case 35/92
Regular price
£30.16
Regular price
Sale price
£30.16
Unit price
per
Tax included.
Shipping calculated at checkout.
Type : Mila
SKU : L15419
Availability : In Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.
We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.
Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

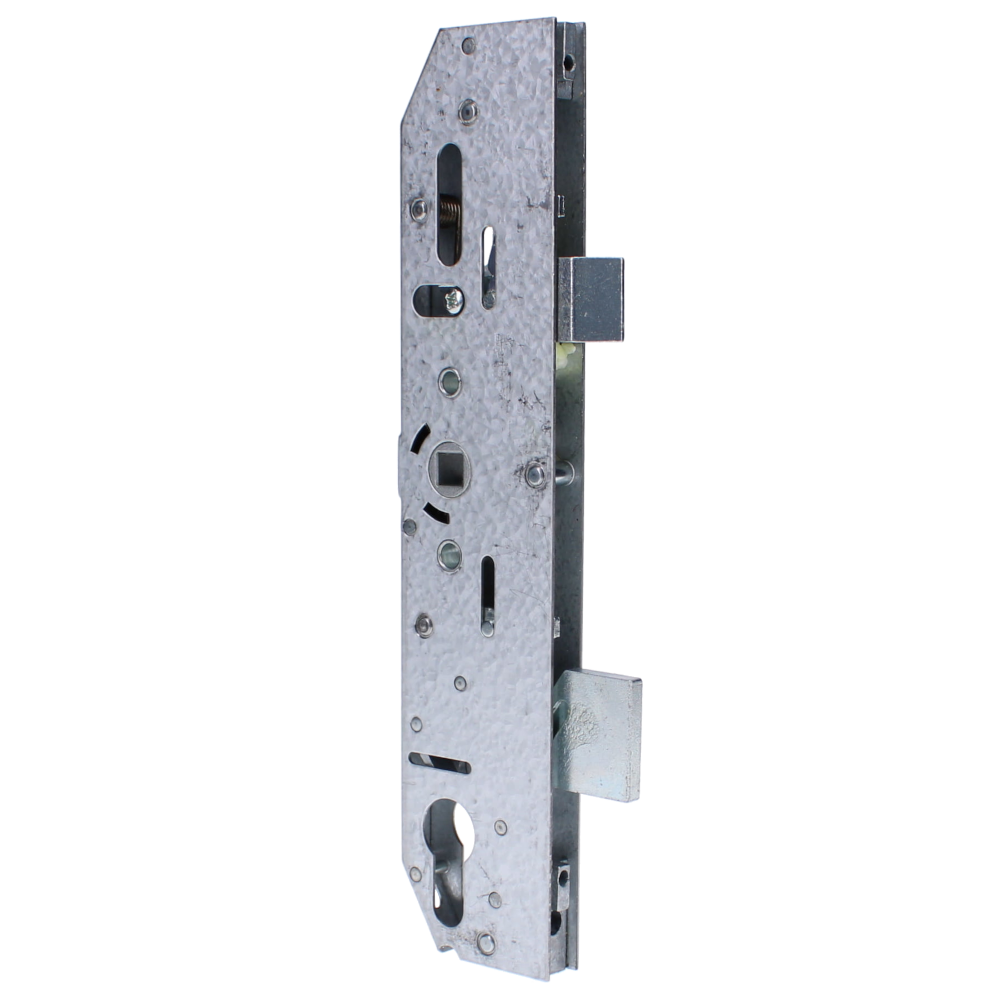

The MILA Lever Operated Latch & Deadbolt - Centre Case 35/92 has 35mm backset, 92mm centres, is single spindle, latch & deadbolt centre case, 234mm case height and has 50mm case width.
To suit old style Mila cases, it offers a cost effective solution for repairing or refurbishing existing door systems without needing to replace the entire strip.
Please note that the fixing points are unthreaded and require the use of self tapping screws.
Please note that some older locks are fitted with an offset or cranked connector. This only affects gearbox replacements, not full length locks, but it is an important factor to check before fitting. Replacement gearboxes are now supplied with inline connectors only.
They remain compatible with older locks. However, the drive gear behind the faceplate would need adapting by modifying the square hole in the drive gear into a slot to ensure correct operation.
Handing
The latch can be reversed by removing the screw in the side of the case, removing the latch, flipping it to the opposite hand and then refitting the screw.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.
To suit old style Mila cases, it offers a cost effective solution for repairing or refurbishing existing door systems without needing to replace the entire strip.
Please note that the fixing points are unthreaded and require the use of self tapping screws.
Please note that some older locks are fitted with an offset or cranked connector. This only affects gearbox replacements, not full length locks, but it is an important factor to check before fitting. Replacement gearboxes are now supplied with inline connectors only.
They remain compatible with older locks. However, the drive gear behind the faceplate would need adapting by modifying the square hole in the drive gear into a slot to ensure correct operation.
Handing
The latch can be reversed by removing the screw in the side of the case, removing the latch, flipping it to the opposite hand and then refitting the screw.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.
Key features
- Euro profile lock case
- Latch & deadbolt
- Centre Gearbox Only
- Single spindle
Specification
- Backset: 35mm
- Case Height: 234mm
- Case Width: 50mm
- Centre Case: Latch & Deadbolt
- Centres: 92mm
- Packaging: Bagged
- Spindle: Single
