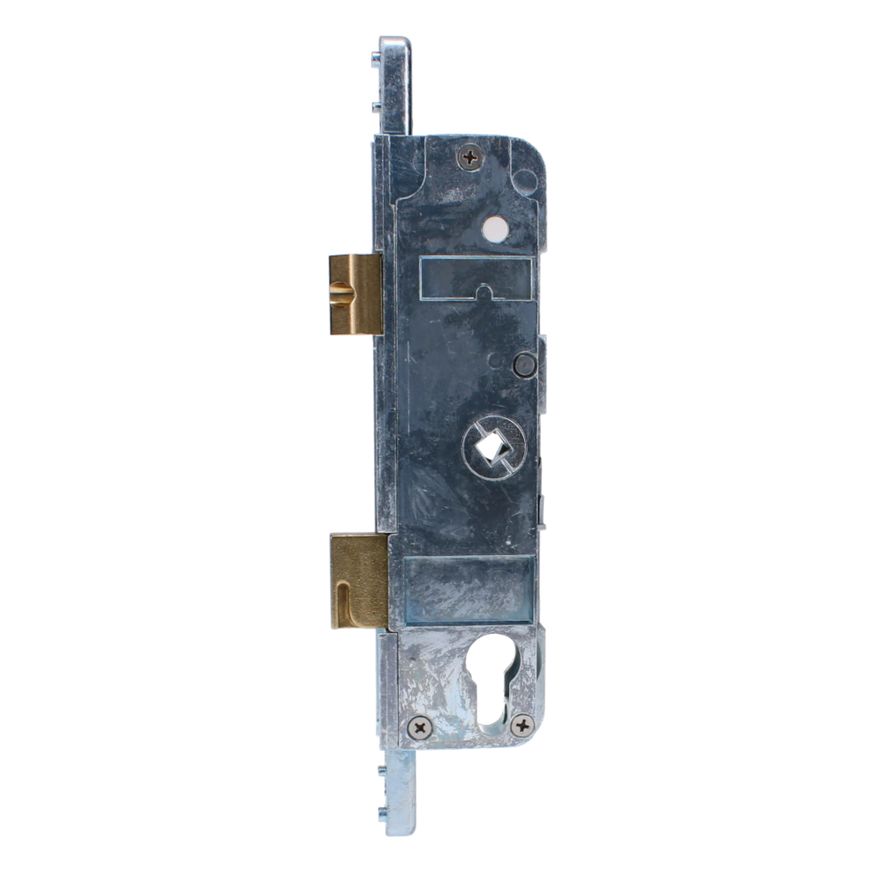

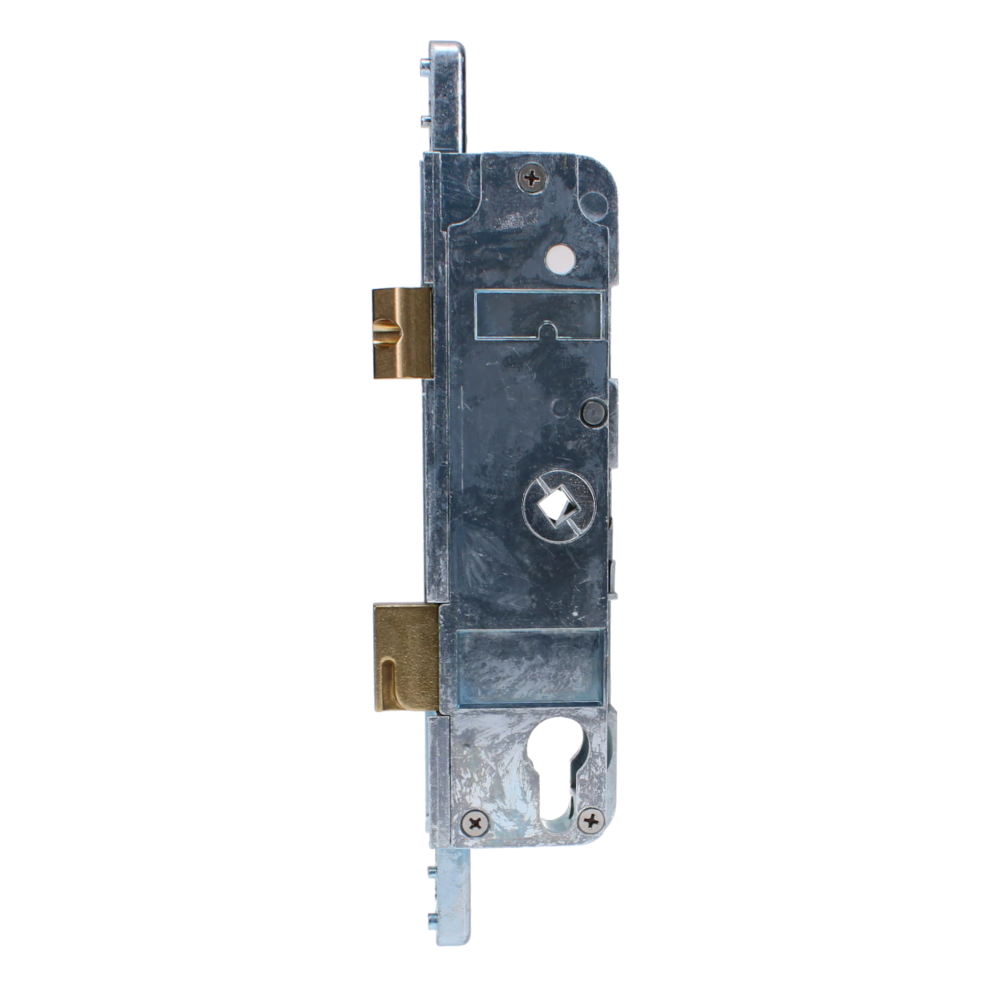

FULLEX Lever Operated Latch & Deadbolt Split Spindle Old Style - Centre Case
FULLEX Lever Operated Latch & Deadbolt Split Spindle Old Style - Centre Case
Regular price
£69.70
Regular price
Sale price
£69.70
Unit price
per
Tax included.
Shipping calculated at checkout.
Type : Fullex
SKU : L15436
Availability : In Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.
We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.
Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy
The FULLEX Lever Operated Latch & Deadbolt Split Spindle Old Style Centre Case has a 35mm, 45mm or 55mm backset with 68mm centres. It is a split spindle centre case with a 194mm case height and a 47mm, 57mm or 67mm case width.
The Fullex Old Style Centre Case features a latch and deadbolt configuration with a split spindle design, intended for use with earlier Fullex multipoint locking systems. It provides a direct gearbox-only replacement and is ideal for lever and pad or lever and lever applications on timber, composite, or UPVC doors where the locking strip remains intact.
Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.
Operation
Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
Notes
Features the older latch style.
The Fullex Old Style Centre Case features a latch and deadbolt configuration with a split spindle design, intended for use with earlier Fullex multipoint locking systems. It provides a direct gearbox-only replacement and is ideal for lever and pad or lever and lever applications on timber, composite, or UPVC doors where the locking strip remains intact.
Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.
Operation
Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
Notes
Features the older latch style.
Key features
- Euro profile lock case
- Latch & deadbolt
- Centre Gearbox Only
- Old Style Version
- Split Spindle
Specification
- Backset: 35mm
- Case Height: 194mm
- Case Width: 55mm
- Centre Case: Latch & Deadbolt
- Centres: 68mm
- Spindle: Split
