FUHR Lever Operated Latch & Deadbolt Split Spindle - Centre Case
FUHR Lever Operated Latch & Deadbolt Split Spindle - Centre Case
Regular price
£46.95
Regular price
Sale price
£46.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Type : Fuhr
SKU : L30154
Availability : In Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.
We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.
Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

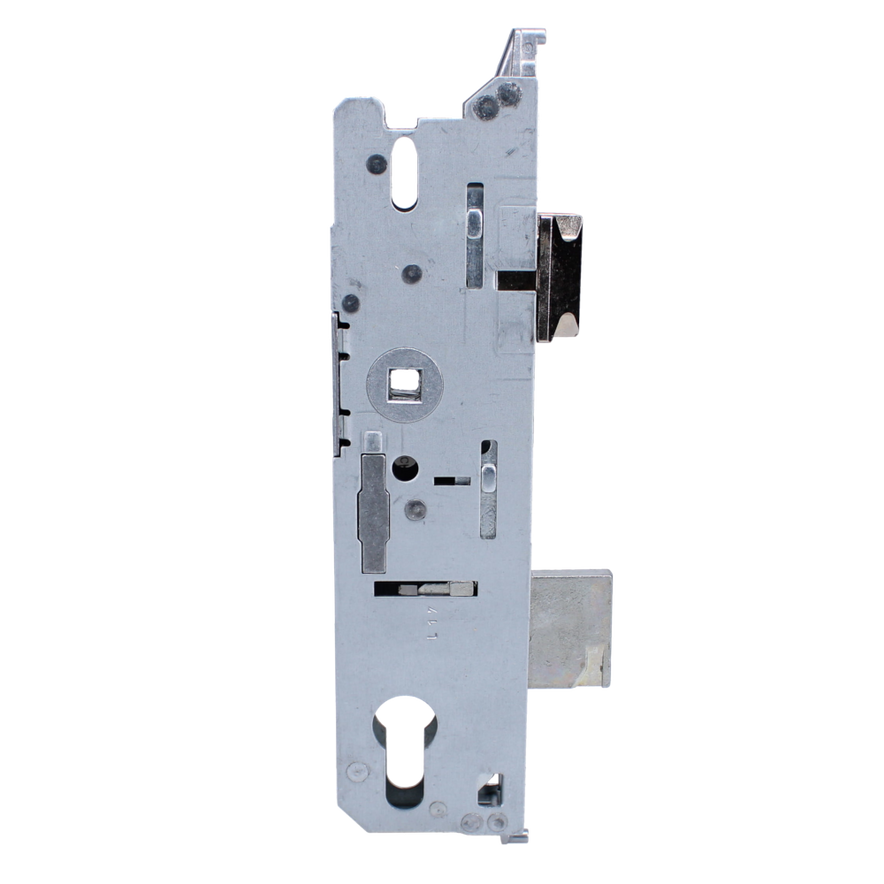

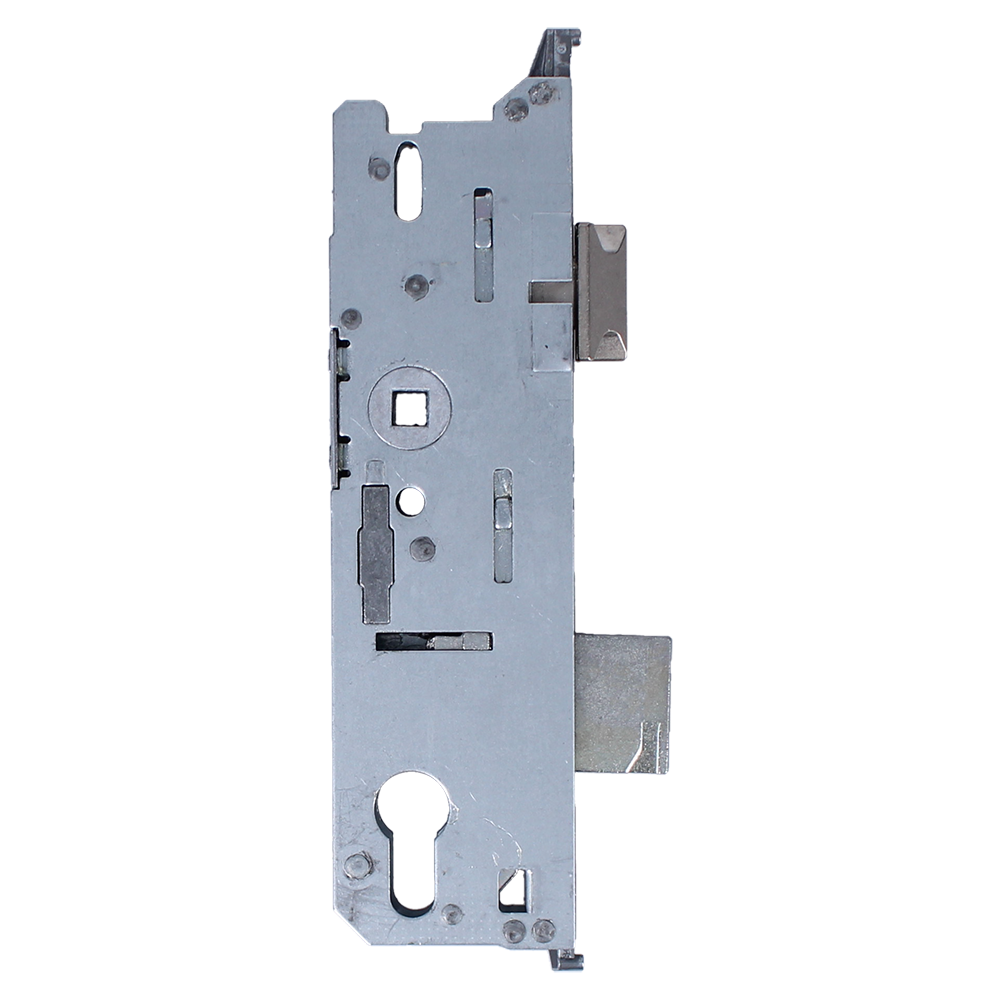

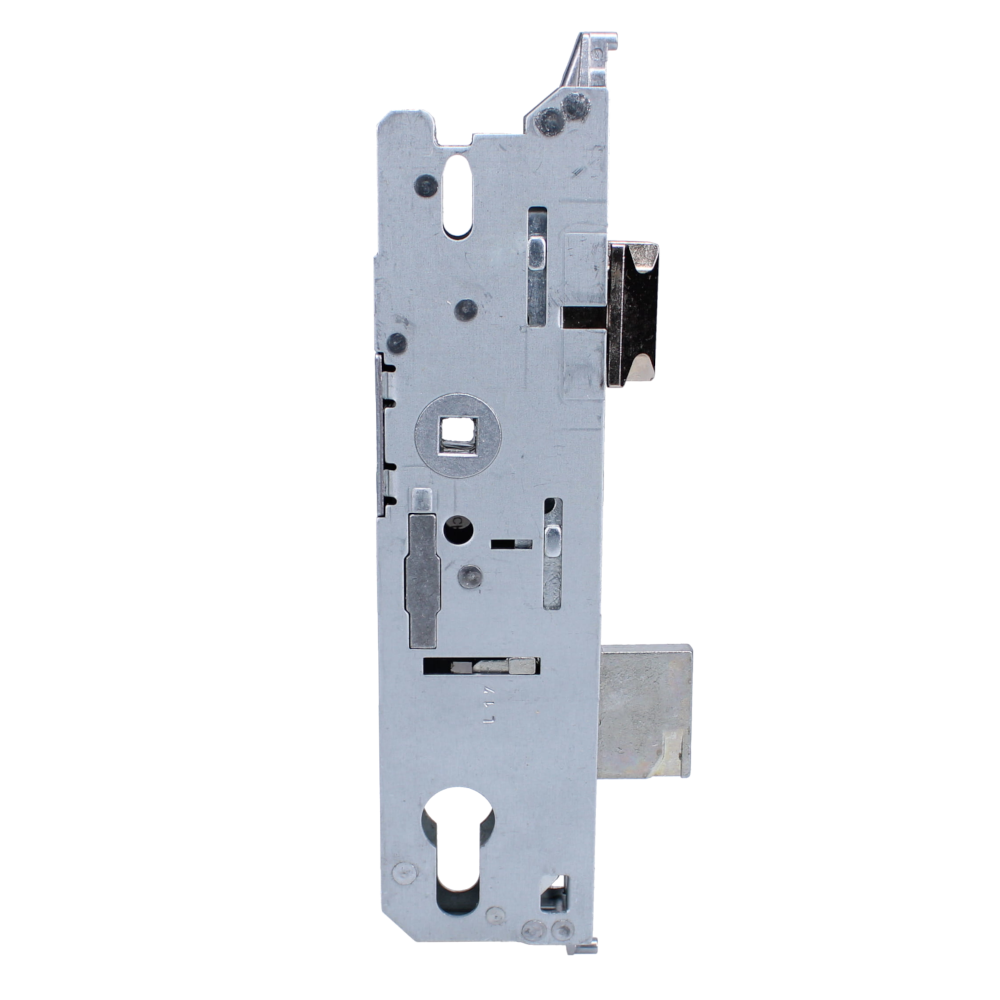

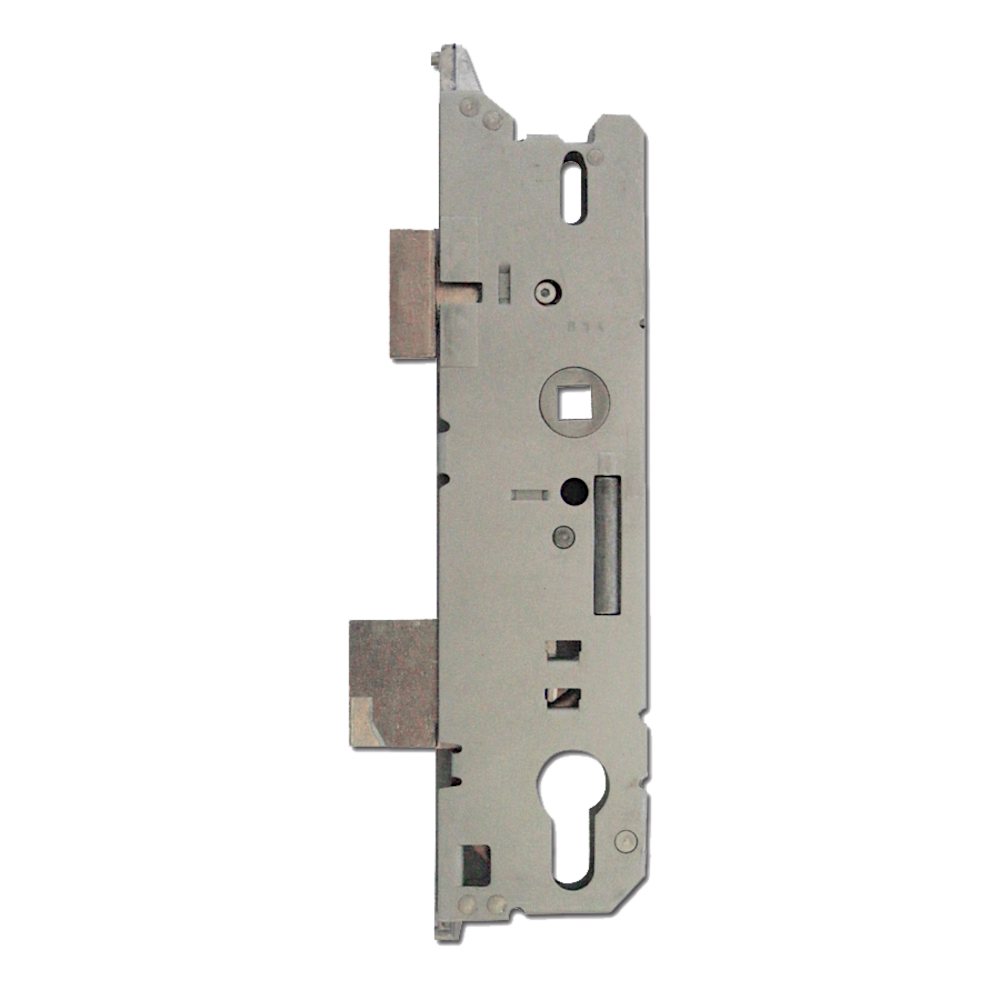

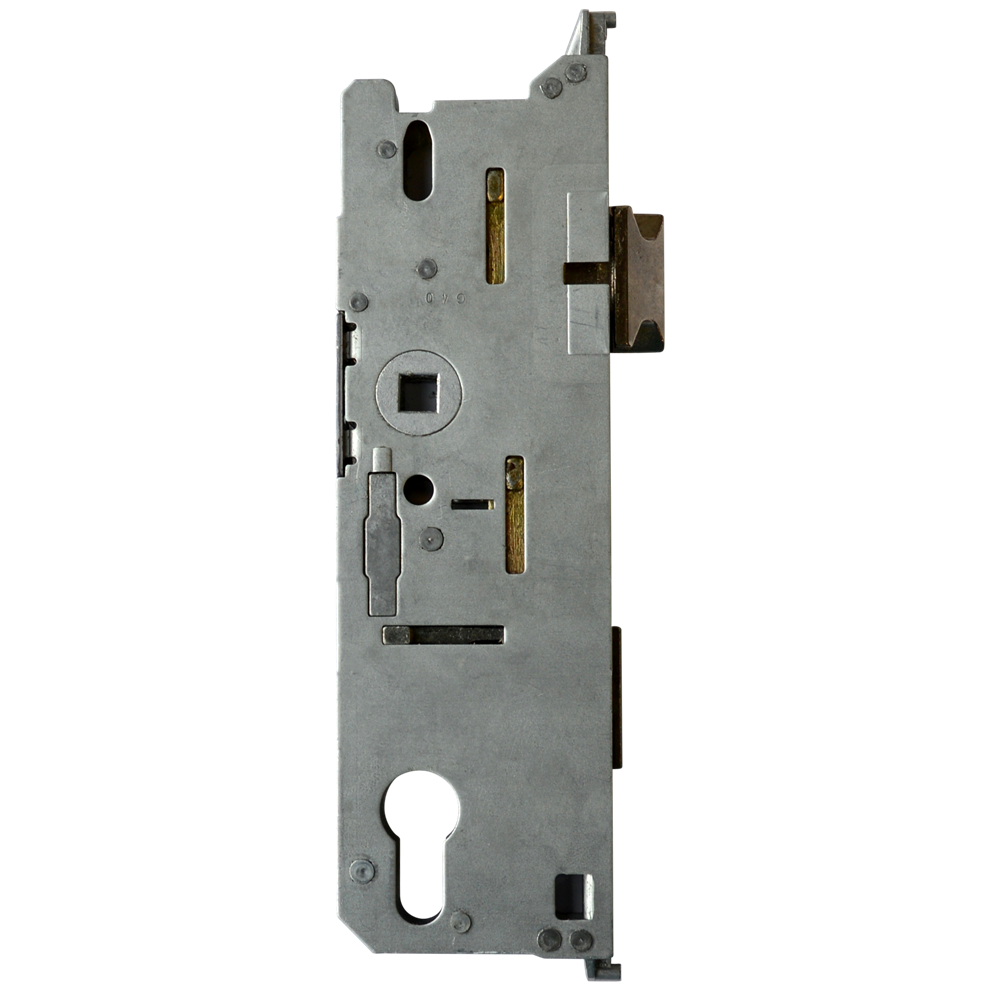

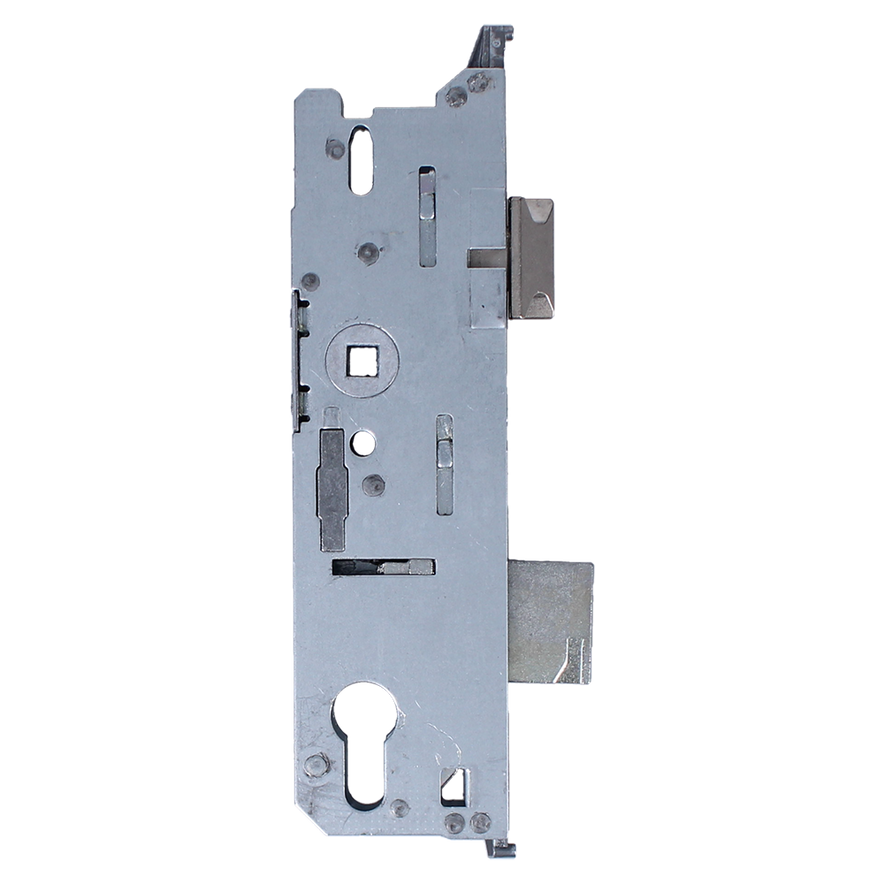

The FUHR Lever Operated Latch & Deadbolt Split Spindle Centre Case has a 35mm, 45mm or 55mm backset with 92mm centres. It is a split spindle centre case with a 200mm case height and a 50mm or 70mm case width.
The FUHR Split Spindle Centre Case is a lever operated gearbox featuring a latch and deadbolt configuration with a split spindle setup. Designed for use with FUHR multipoint locks, it is ideal for lever and pad or lever and lever handle arrangements, providing a direct replacement without the need to change the full locking strip.
Handing
The latch can be reversed by locating the Allen screw on the side of the lockcase in line with the latch. Remove the screw, pull out and reverse the latch, then refit the Allen screw.
Operation
Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
Notes
The ball bearing, screw, and spring required to operate this centre case must be purchased separately. The corresponding Aldridge product codes are L23669, L23670, and L23671.
The FUHR Split Spindle Centre Case is a lever operated gearbox featuring a latch and deadbolt configuration with a split spindle setup. Designed for use with FUHR multipoint locks, it is ideal for lever and pad or lever and lever handle arrangements, providing a direct replacement without the need to change the full locking strip.
Handing
The latch can be reversed by locating the Allen screw on the side of the lockcase in line with the latch. Remove the screw, pull out and reverse the latch, then refit the Allen screw.
Operation
Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
Notes
The ball bearing, screw, and spring required to operate this centre case must be purchased separately. The corresponding Aldridge product codes are L23669, L23670, and L23671.
Key features
- Euro profile lock case
- Latch & deadbolt
- Centre Gearbox Only
- Split spindle
- Euro cylinder
Specification
- Backset: 45mm
- Case Height: 200mm
- Case Width: 50mm
- Centre Case: Latch & Deadbolt
- Centres: 92mm
- Pack Quantity: 1
- Packaging: Loose
- Spindle: Split
