• DORMAKABA PHA2220 Standard Panic Bolt - Silver
    DORMAKABA PHA2220 Standard Panic Bolt - Silver
1 1

DORMAKABA PHA2220 Standard Panic Bolt

DORMAKABA PHA2220 Standard Panic Bolt

£141.48
£141.48
Sale Sold out
Tax included. Shipping calculated at checkout.

Type : Panic Bolt

SKU : L25213

Availability : In Stock

Shipping & Returns

UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.

We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.

Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

View full details

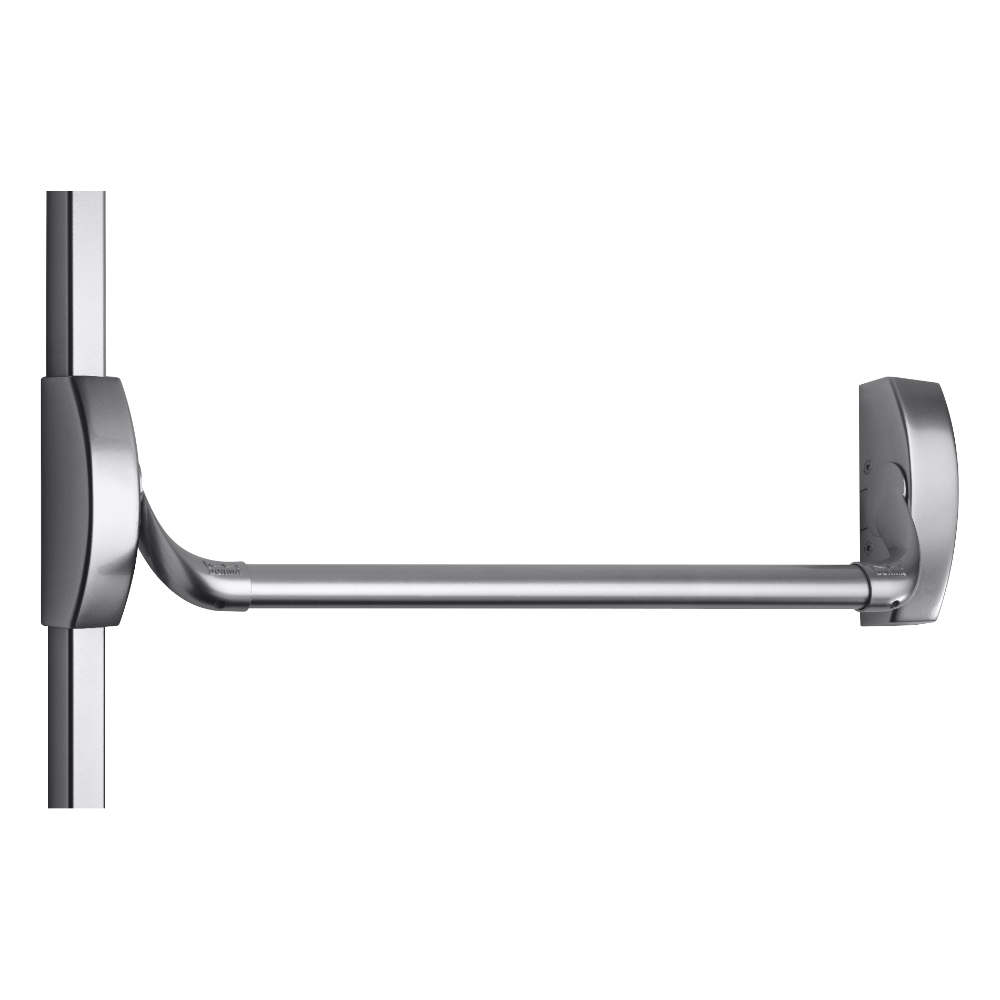

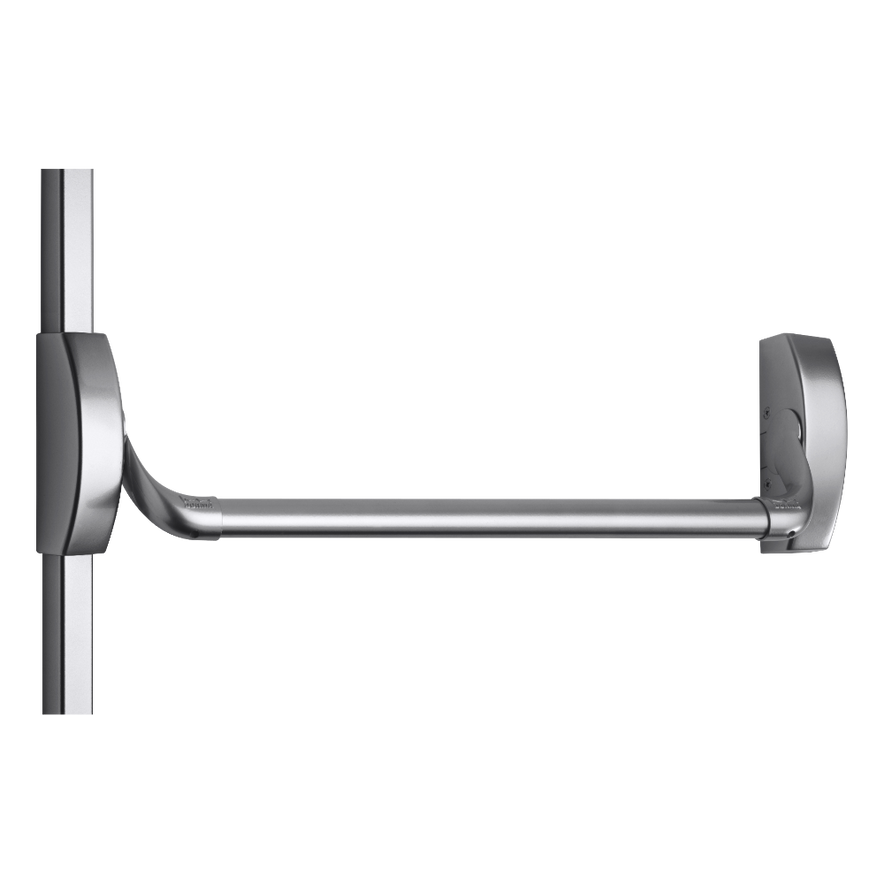

The dormakaba (formerly known as Dorma) PHA 2220 Standard Panic Bolt is a two-point locking panic device to suit door widths up to 1000mm. Like the rest of the dormakaba PHA 2000 range, this unit has been tested in accordance with EN 1125 and carries the CE mark.

This double-point locking unit with steel top and bottom shoot bolts and an operation bar which is suitable for use on fire and smoke check doors and is fitted with a dogging device to hold the latch in retracted position therefore allow free access if required. It is Certifire approved and suitable for use on FD60 fire doors.

Key features

  • Two-point locking
  • For fire and smoke check doors
  • Steel top and bottom shoot bolts
  • 830mm to 1000mm operation bar
  • Connecting rod set with metal covers for door heights up to 2270mm
  • BS EN 1125 tested and suitable for use in public areas

Specification

  • Body Height: 145mm
  • Depth: 95mm
  • Width: 1.285m
  • Finish: Silver
  • Fire Tested: 1 Hour
  • Handed: Reversible
  • Max Door Height: 2270mm
  • Max Door Weight: 200Kg
  • Max Door Width: 1000mm
  • Pack Quantity: 1
  • Packaging: Boxed
  • Screw Centres: 113mm
  • Standards: CE Marked,Certifire,BS EN 1125
