DORMAKABA Electric Lock SVP6277 12/24V DC FL/FU Outwards Din Left / Inwards Din Right

DORMAKABA Electric Lock SVP6277 12/24V DC FL/FU Outwards Din Left / Inwards Din Right

£579.74
£579.74
Sale Sold out
Tax included. Shipping calculated at checkout.

Type : Dorma

SKU : L32669

Availability : In Stock

Shipping & Returns

UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.

We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.

Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

View full details

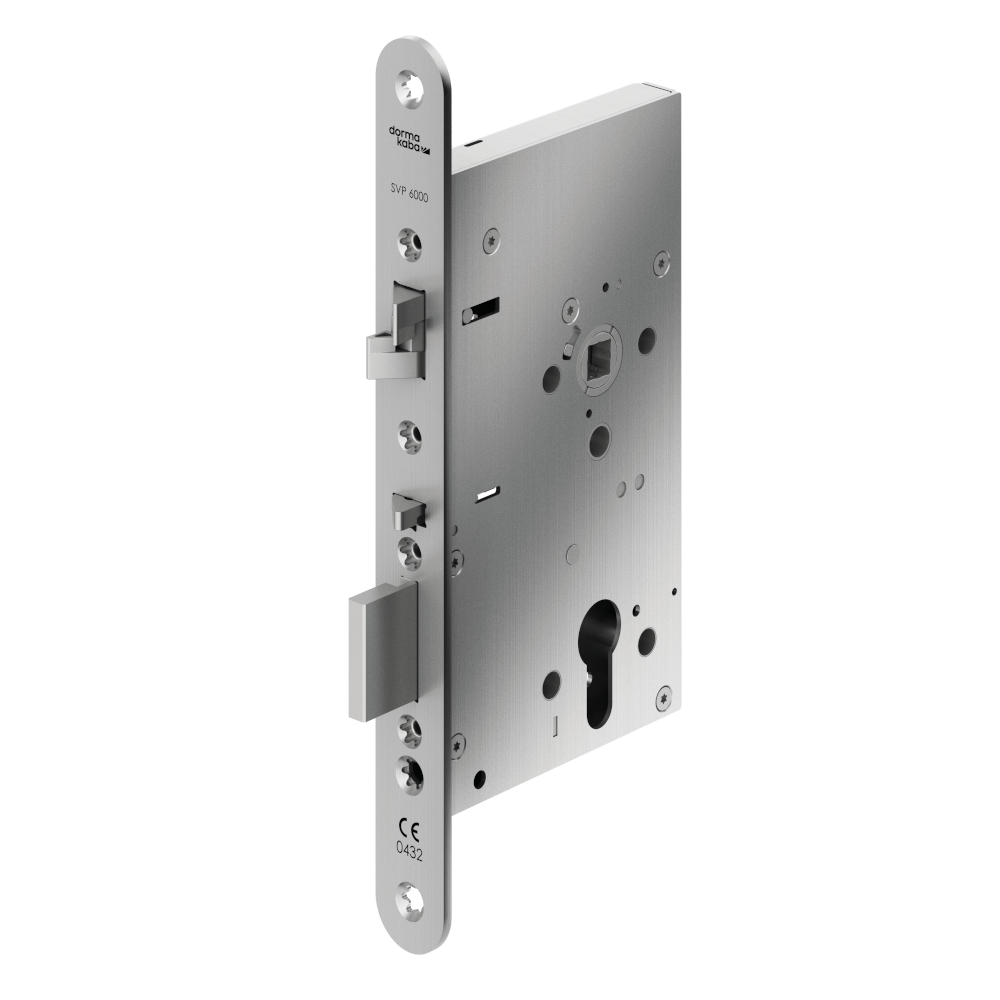

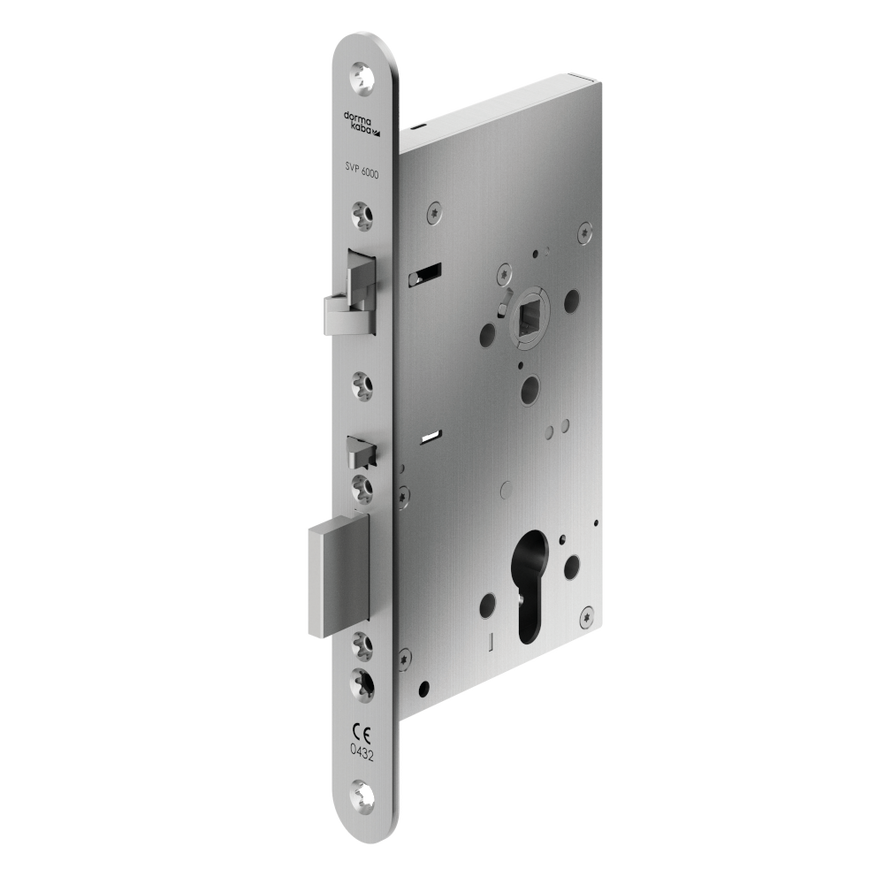

The Dormakaba SVP6277 is a microswitch-monitored emergency-escape lock with automatic locking action, suitable for non rebated single leaf timber doors. It is electrically monitored, with split follower, optimised mechanical sequential control and status monitoring. The product is CE marked, Certifire approved and suitable for use on FD30 & FD60 fire doors when fitted with the appropriate intumescent pack.

Key features

  • To suit non rebated single leaf timber doors
  • Steel bolt projection 20mm
  • Max load current 30 VDC, 100mA
  • Status monitoring
  • Split 9mm square section follower
  • Two point locking activated by pre-loaded spring when door closes

Specification

  • Backset: 65mm
  • Body Height: 165mm
  • Body Width: 20mm
  • Centres: 72mm
  • Faceplate Height: 235mm
  • Faceplate Width: 24mm
  • Finish: Stainless Steel
  • Fire Tested: 1 Hour
  • Input Voltage: 12/24V DC
  • Pack Quantity: 1
  • Standards: BS EN 1125,Certifire,CE Marked,BS EN 179
