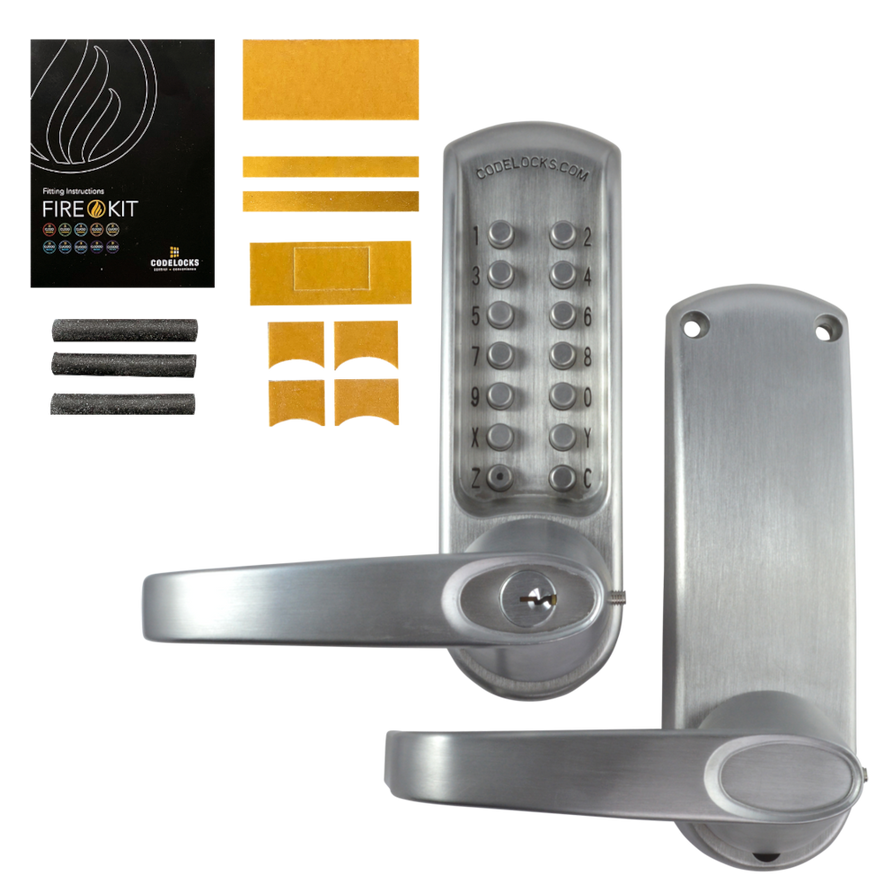

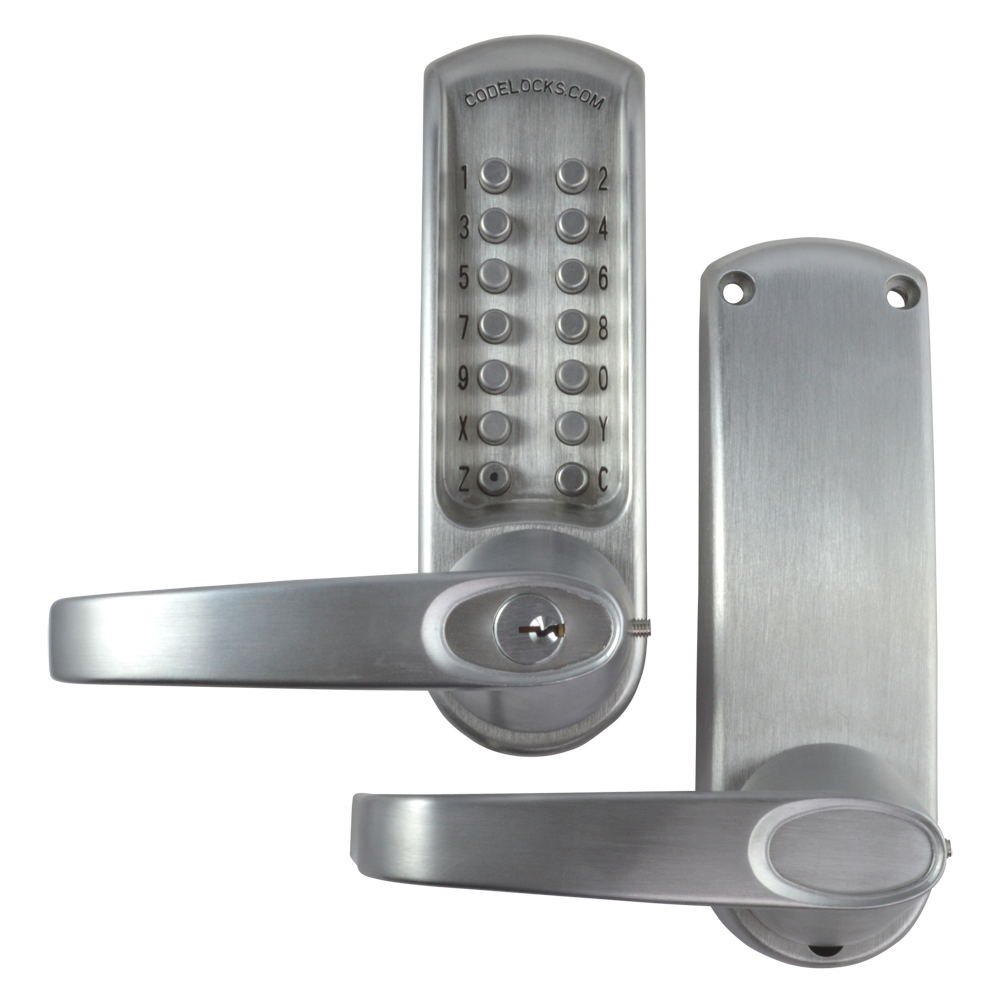

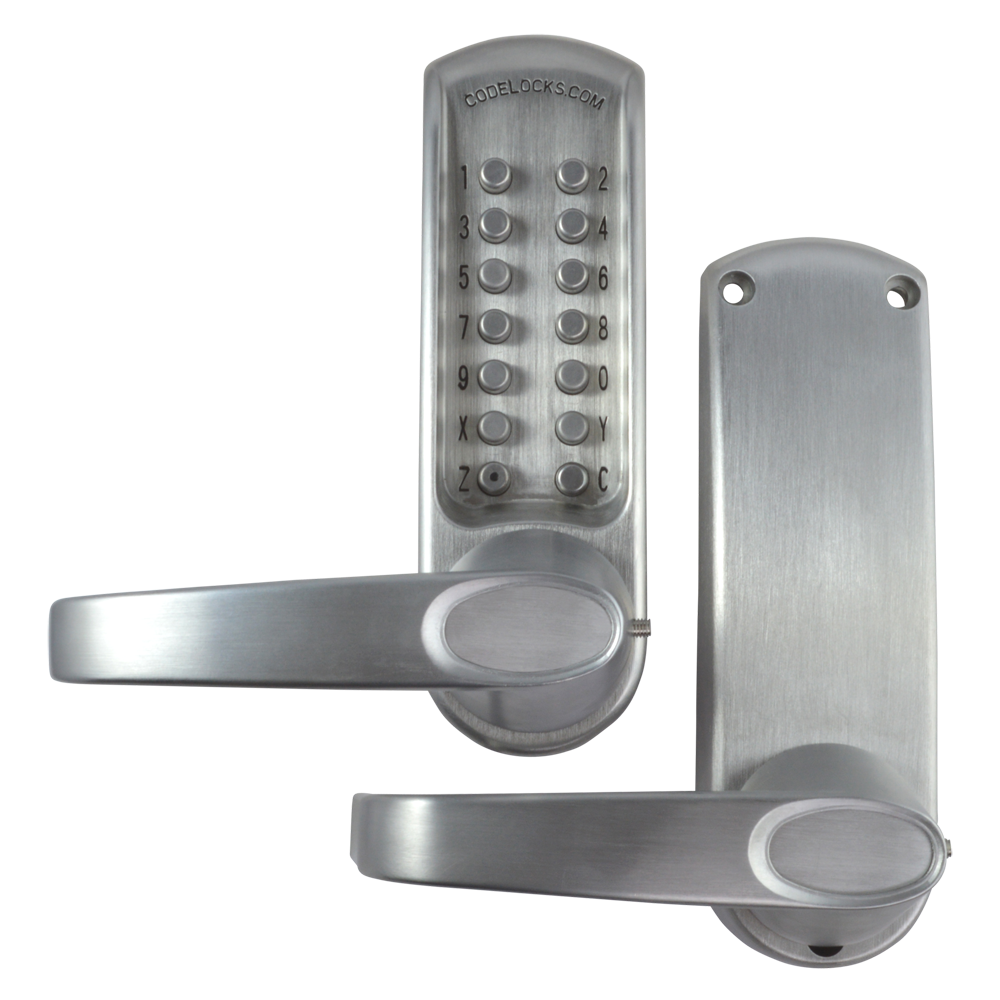

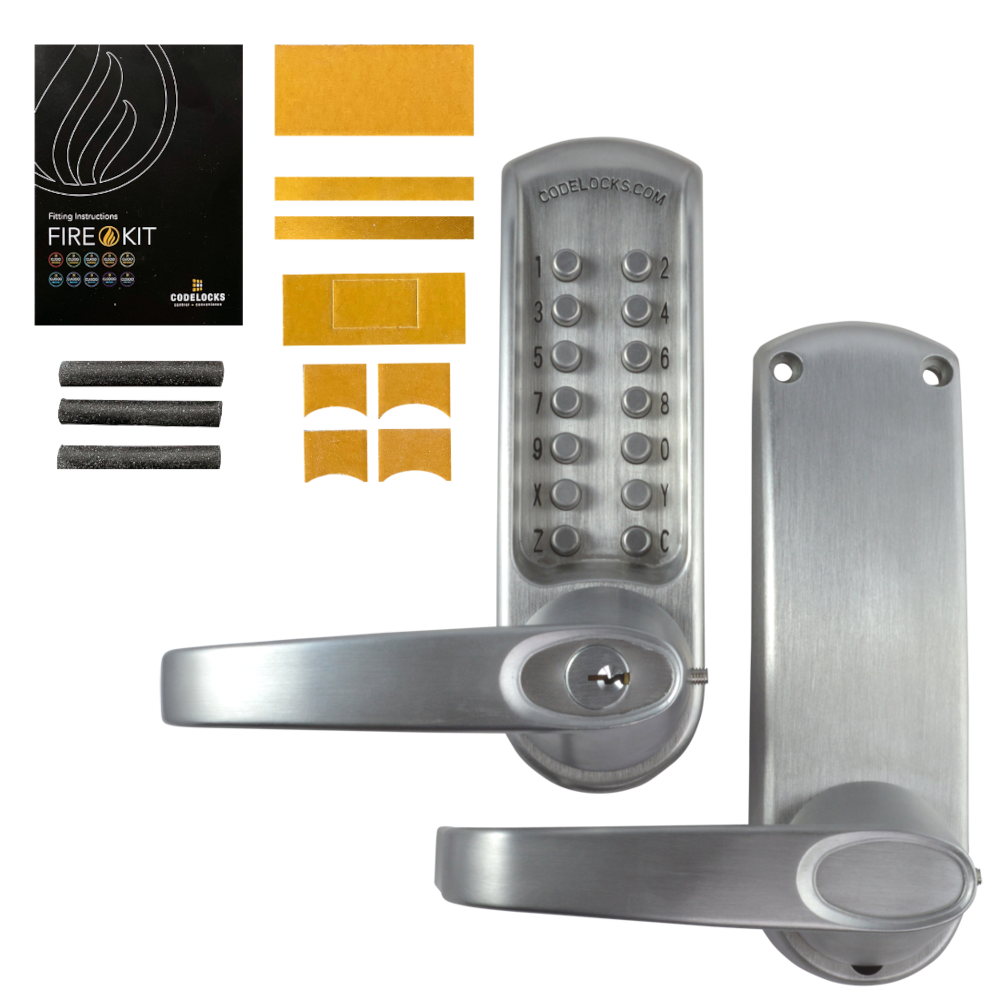

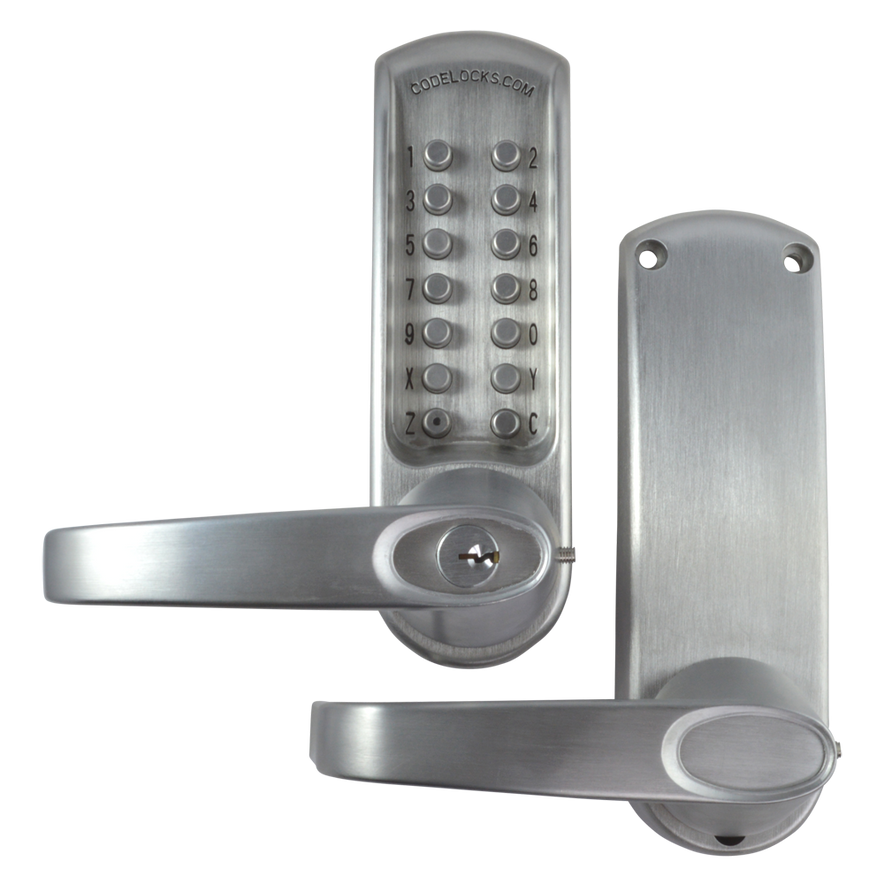

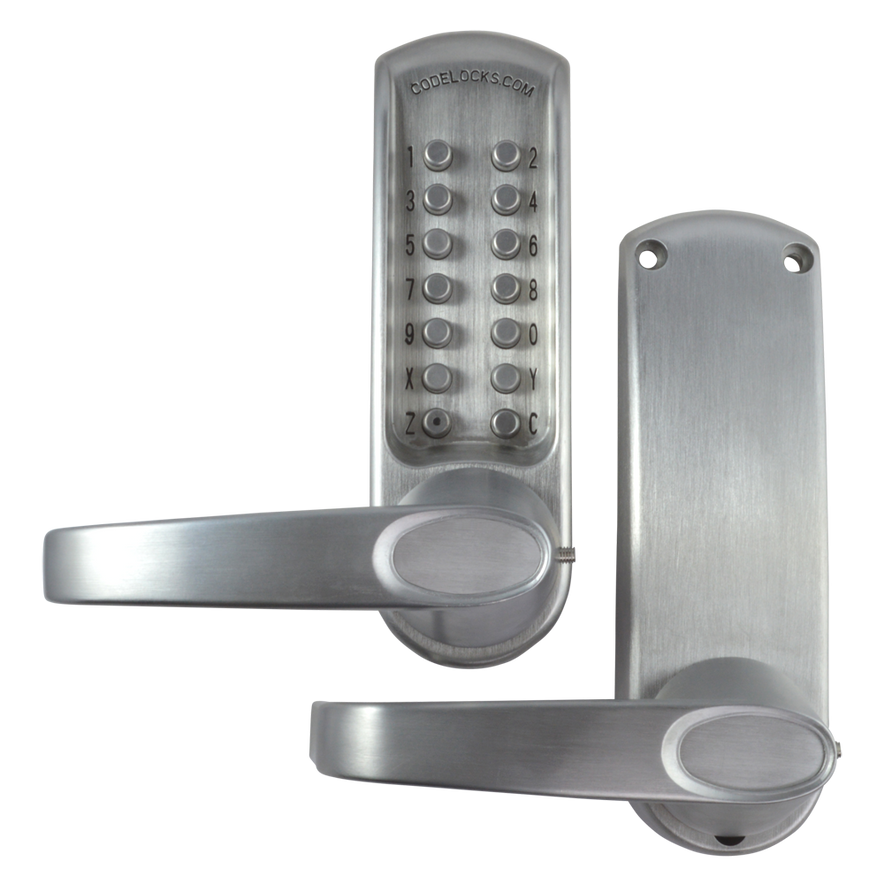

The CL610 and CL615 are part of the Codelocks CL600 series, heavy duty locks with on the door code change capabilities. The outside lever handle will retract the latch after a correct code is entered, the spring loaded latchbolt will lock automatically when the door is closed. These products are suitable for use on FD30 and FD60 fire doors, to achieve the fire rating these digital locks must be fitted with the appropriate intumescent pack, please see associated products.

Clean by Codelocks is an optional finish available to special order on many Codelock products. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation. Clean by Codelocks features an ISO certified photocatalytic coating which offers enhanced protection against viruses, bacteria, germs and other environmental toxins. For full details please view the data sheet in the associated documents or to order please contact our Specials Department.

IMPORTANT:
Before ordering a Codelocks front/back plate set for use on an existing lock case, the current lock case must be tested to ensure it is compatible. Please see the 3rd Party Lock Disclaimer PDF document below for full information.

Key features

• Quick Code change - no need to remove lock from door
• Internal doors and External doors
• Non handed units
• Tested to Grade 2 - ANSI - A156.2
• UL/ULC Fire rating 3 hours (when fitted with fire kit)
• This product is fire tested and must be installed per the manufacturer’s instructions, and with all relevant associated products

Specification

• Backset: 60mm
• Width: 58mm
• Door Thickness: 35mm to 65mm
• Finish: Stainless Steel
• Fire Tested: 1 Hour
• Guarantee: Limited Lifetime
• Handed: Reversible
• Holdback: No
• Key Override: Yes
• Keys Supplied: 2
• Pack Quantity: 1
• Packaging: Boxed
• Weather Resistant: true
