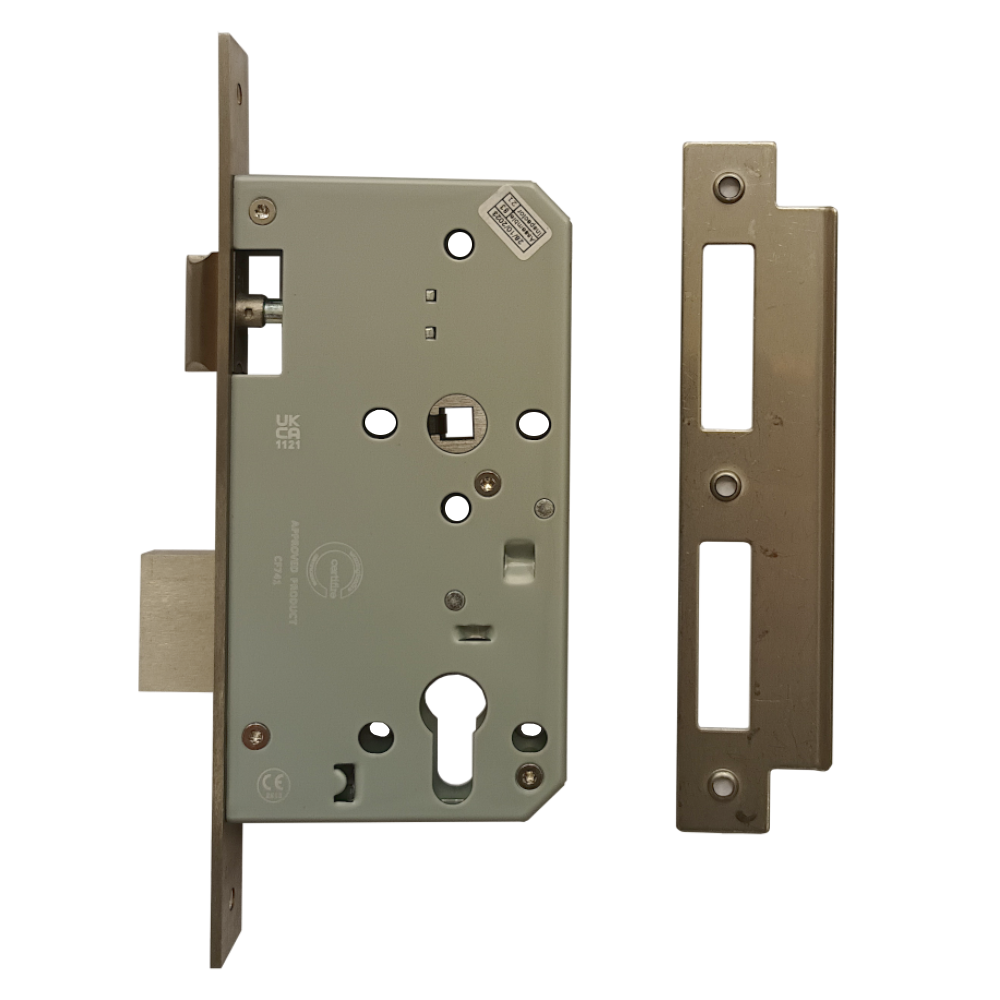

• Briton 5420 DIN Standard Euro Sashcase - 60mm SS Square Boxed
    Briton 5420 DIN Standard Euro Sashcase - 60mm SS Square Boxed

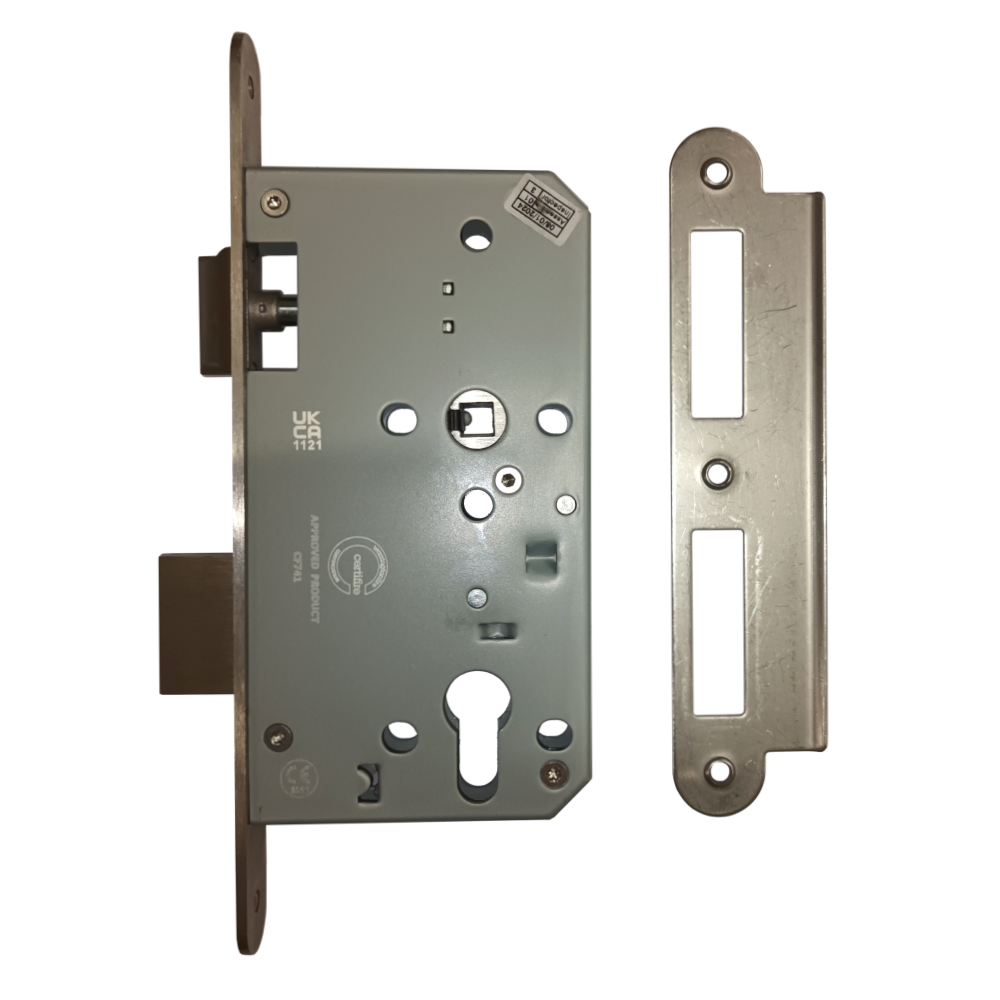

  • Briton 5420 DIN Standard Euro Sashcase - 60mm SS Radius Boxed
    Briton 5420 DIN Standard Euro Sashcase - 60mm SS Radius Boxed
1 2

Briton 5420 DIN Euro Sashcase

Briton 5420 DIN Euro Sashcase

£28.19
£28.19
Sale Sold out
Tax included. Shipping calculated at checkout.

Type : Cylinder - Euro

SKU : L13625

Availability : In Stock

Variant

Shipping & Returns

UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.

We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.

Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

View full details
The Briton 5420 DIN Standard Euro Sashcase is a heavy duty mortice sashlock designed for lockable doors fitted with lever furniture. The latchbolt is withdrawn by the lever handle, while the deadbolt is operated by a euro profile cylinder, making it suitable for a wide range of commercial door applications.

Based on the dimensional requirements of DIN 18251, the Briton 5420 features 72mm follower to cylinder centres and a grade 304 stainless steel forend with a satin finish. It is CE marked, tested to EN 12209 and included in a successful fire test to EN 1634. These products are suitable for use on FD30 and FD60 fire doors, to achieve the fire rating these digital locks must be fitted with the appropriate intumescent pack, if fitted to a fire door, a suitable door closer must also be installed.

Key features

  • Heavy duty
  • Follower to cylinder 72mm
  • Based on the dimensional requirements of DIN18251
  • EN 12209
  • Included in a successful time test to EN 1634, CE marked
  • Grade 304 Stainless Steel with a Satin Finish

Specification

  • Backset: 60mm
  • Bolt Throw: 20mm
  • Case Height: 165mm
  • Case Depth: 89mm
  • Case Width: 15mm
  • Centres: 72mm
  • Finish: Stainless Steel
  • Fire Tested: 1 Hour
  • Forend Length: 235mm
  • Forend Width: 20mm
  • Guarantee: 5 Year
  • Handed: Reversible
  • Mechanism: Euro Cylinder
  • Pack Quantity: 1
  • Packaging: Boxed
  • Spindle: 8mm
