AVOCET Pioneer 35/92 2 Hook 2 Roller Twin Spindle Lifter
AVOCET Pioneer 35/92 2 Hook 2 Roller Twin Spindle Lifter
Regular price
£51.03
Regular price
Sale price
£51.03
Unit price
per
Tax included.
Shipping calculated at checkout.
Type : Avocet
SKU : L30166
Availability : In Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.
We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.
Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

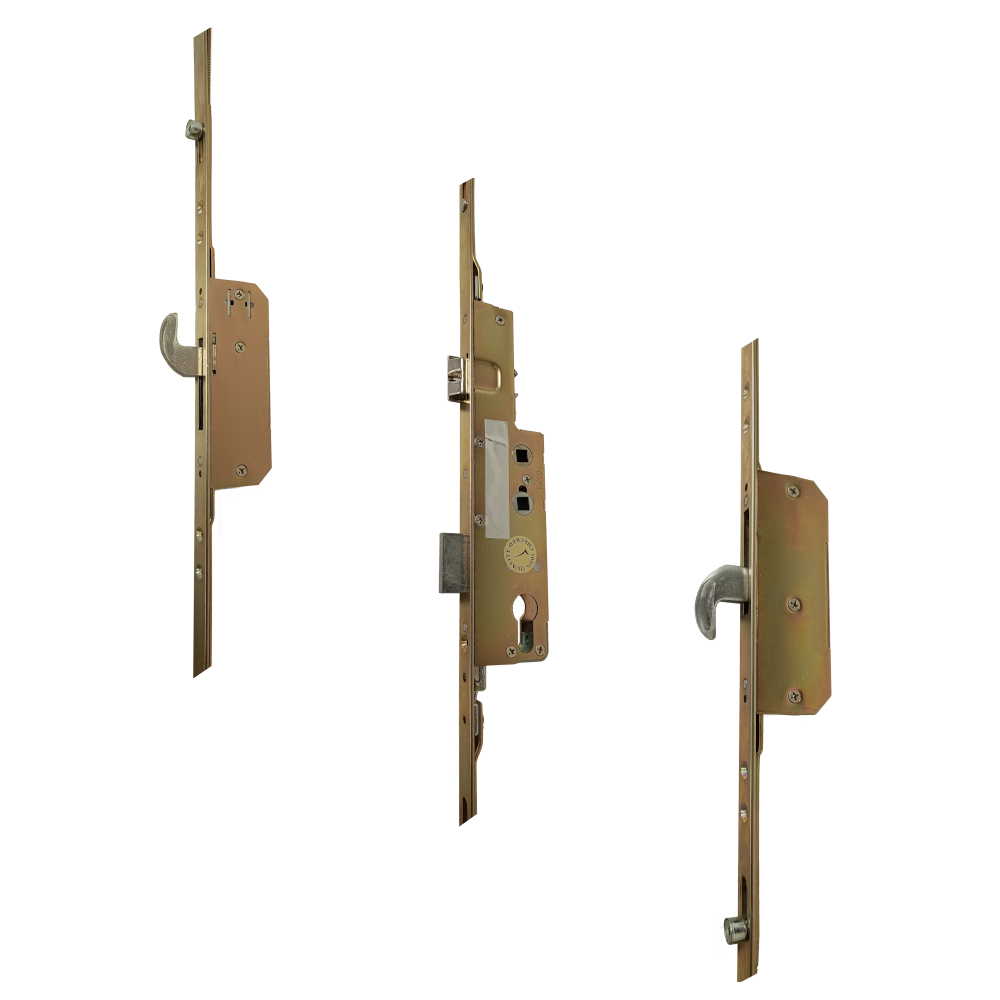

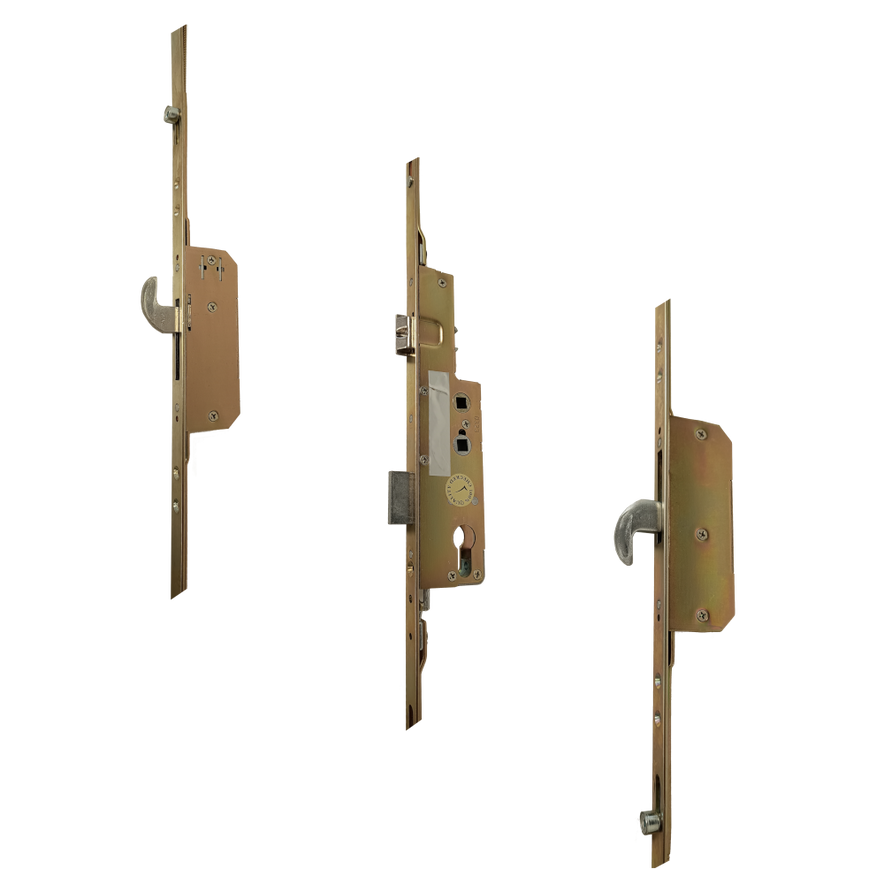

The AVOCET Pioneer 35/92 2 Hook 2 Roller Twin Spindle has 35mm backset, 92mm & 62mm centres, 220mm case height, 50mm case width, is twin spindle and has a latch & deadbolt centre case.
This unit features two roller cams for effortless operation & two opposing hooks for enhanced security.
Identification
Usually has "AVOCET" or "WMS" stamped on the faceplate and the center case has a large cut out step in the top corner.
Gearbox
The latch & deadbolt gearbox has a twin spindle, a case height of 220mm and a case width of 50mm.
Additional Locking Points
In addition to the locking points within the gearbox, the full length strip has 2 hook and 2 roller locking points.
Shootbolts
This unit can be fitted with optional shootbolts.
Faceplate
16mm wide faceplate, ideal for use on UPVC & composite applications and is 2.2m long.
Locking Point Distances
Locking Point Distance A = 575mm
Locking Point Distance B = 630mm
Locking Point Distance C = 735mm
Locking Point Distance D = 800mm
Croppable
This unit cannot be cropped down on site, please check the required unit length before purchasing.
Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.
Spung/Unsprung
The gearbox is unsprung and must be installed with sprung handles and / or a compatible spring cassette to ensure correct operation and reliable lever return.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
This unit features two roller cams for effortless operation & two opposing hooks for enhanced security.
Identification
Usually has "AVOCET" or "WMS" stamped on the faceplate and the center case has a large cut out step in the top corner.
Gearbox
The latch & deadbolt gearbox has a twin spindle, a case height of 220mm and a case width of 50mm.
Additional Locking Points
In addition to the locking points within the gearbox, the full length strip has 2 hook and 2 roller locking points.
Shootbolts
This unit can be fitted with optional shootbolts.
Faceplate
16mm wide faceplate, ideal for use on UPVC & composite applications and is 2.2m long.
Locking Point Distances
Locking Point Distance A = 575mm
Locking Point Distance B = 630mm
Locking Point Distance C = 735mm
Locking Point Distance D = 800mm
Croppable
This unit cannot be cropped down on site, please check the required unit length before purchasing.
Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.
Spung/Unsprung
The gearbox is unsprung and must be installed with sprung handles and / or a compatible spring cassette to ensure correct operation and reliable lever return.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Key features
- Suitable for lever-lever and lever-pad applications
- Endurance tested to 100,000 operations
- Can be fitted with shootbolts
- Two roller cams for effortless operation & two opposing hooks for enhanced security
- Latch & deadbolt centre case
- Latch can be reversed without having to remove the lock
Specification
- Backset: 35mm
- Case Height: 220mm
- Case Width: 50mm
- Centre Case: Latch & Deadbolt
- Centres: 92mm & 62mm
- Faceplate Width: 16mm
- Finish: Yellow Passivate
- Handed: Reversible
- Length: 2.2m
- Locking Point Hooks: 2
- Locking Point Roller: 2
- Mechanism: Euro Cylinder (not included)
- Hooks: 2
- Spindle: Twin
