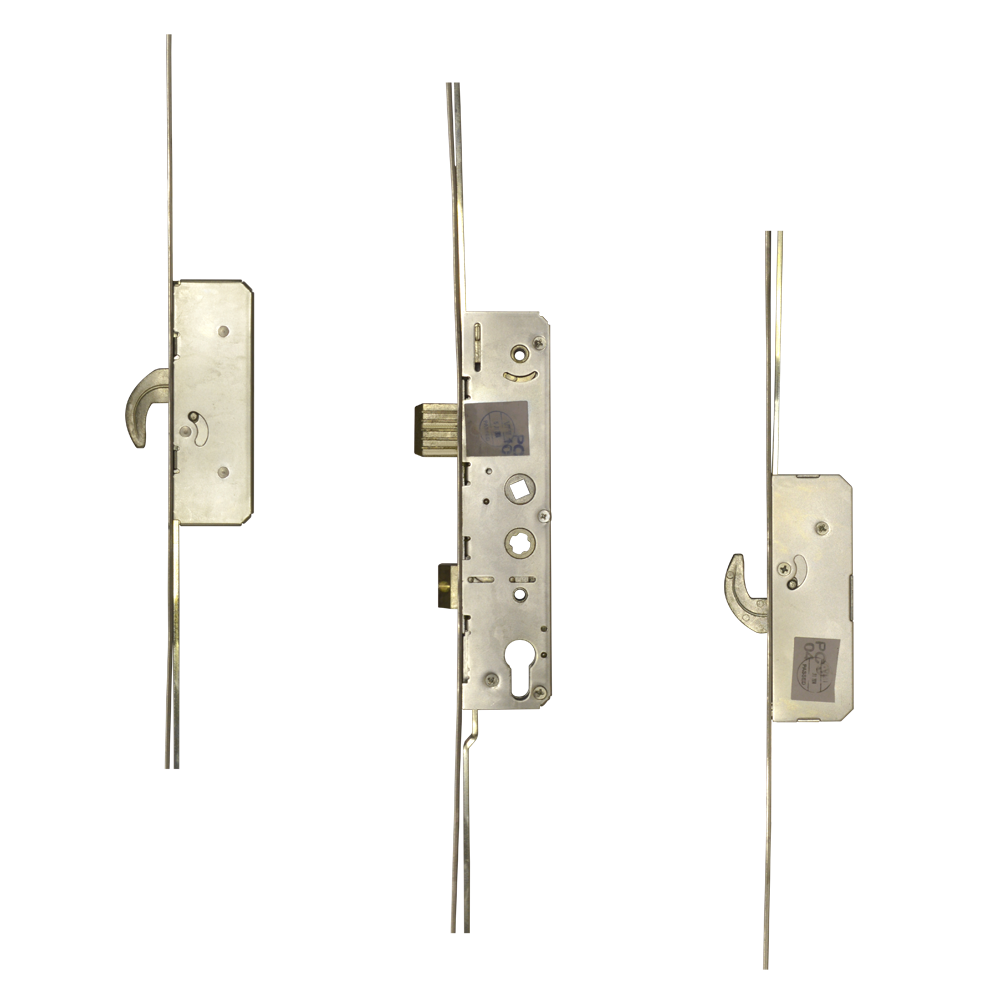

AVANTIS Lever Operated Twin Spindle Latch & Deadbolt - 2 Hook Large
AVANTIS Lever Operated Twin Spindle Latch & Deadbolt - 2 Hook Large
Regular price
£94.86
Regular price
Sale price
£94.86
Unit price
per
Tax included.
Shipping calculated at checkout.
Type : Avantis
SKU : L24016
Availability : In Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.
We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.
Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy
The AVANTIS Lever Operated Twin Spindle Latch & Deadbolt - 2 Hook Large has 45mm backset, 92mm & 62mm centres, 220mm case height, 63mm case width, is twin spindle and has a latch & deadbolt centre case.
Avantis door locks have the largest hook and bolts on the market at 25mm and are designed to provide both ultimate security & compression.
Identification
Can be identified by the ribbed deabolt and extra large 25mm hooks.
Gearbox
The latch & deadbolt gearbox has a twin spindle, a case height of 220mm and a case width of 63mm.
Additional Locking Points
In addition to the locking points within the gearbox, the full length strip has 2 hook locking points.
Faceplate
16mm or 20mm wide faceplate, ideal for use on UPVC & composite applications and is 1.78m or 2.2m long.
Locking Point Distances
Locking Point Distance A = 750mm
Locking Point Distance B = 750mm
Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.
Spung/Unsprung
The gearbox is unsprung and must be installed with sprung handles and or a compatible spring cassette to ensure correct operation and reliable lever return.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Avantis door locks have the largest hook and bolts on the market at 25mm and are designed to provide both ultimate security & compression.
Identification
Can be identified by the ribbed deabolt and extra large 25mm hooks.
Gearbox
The latch & deadbolt gearbox has a twin spindle, a case height of 220mm and a case width of 63mm.
Additional Locking Points
In addition to the locking points within the gearbox, the full length strip has 2 hook locking points.
Faceplate
16mm or 20mm wide faceplate, ideal for use on UPVC & composite applications and is 1.78m or 2.2m long.
Locking Point Distances
Locking Point Distance A = 750mm
Locking Point Distance B = 750mm
Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.
Spung/Unsprung
The gearbox is unsprung and must be installed with sprung handles and or a compatible spring cassette to ensure correct operation and reliable lever return.
Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Key features
- 2 Hook Large
- 92/62mm centres
- 45mm backset
- Twin spindle
- Latch & Deadbolt
- To suit composition doors
Specification
- Backset: 45mm
- Case Height: 220mm
- Case Width: 63mm
- Centre Case: Latch & Deadbolt
- Centres: 92mm & 62mm
- Faceplate Width: 20mm
- Length: 1.78m
- Locking Point Hooks: 2
- Spindle: Twin
