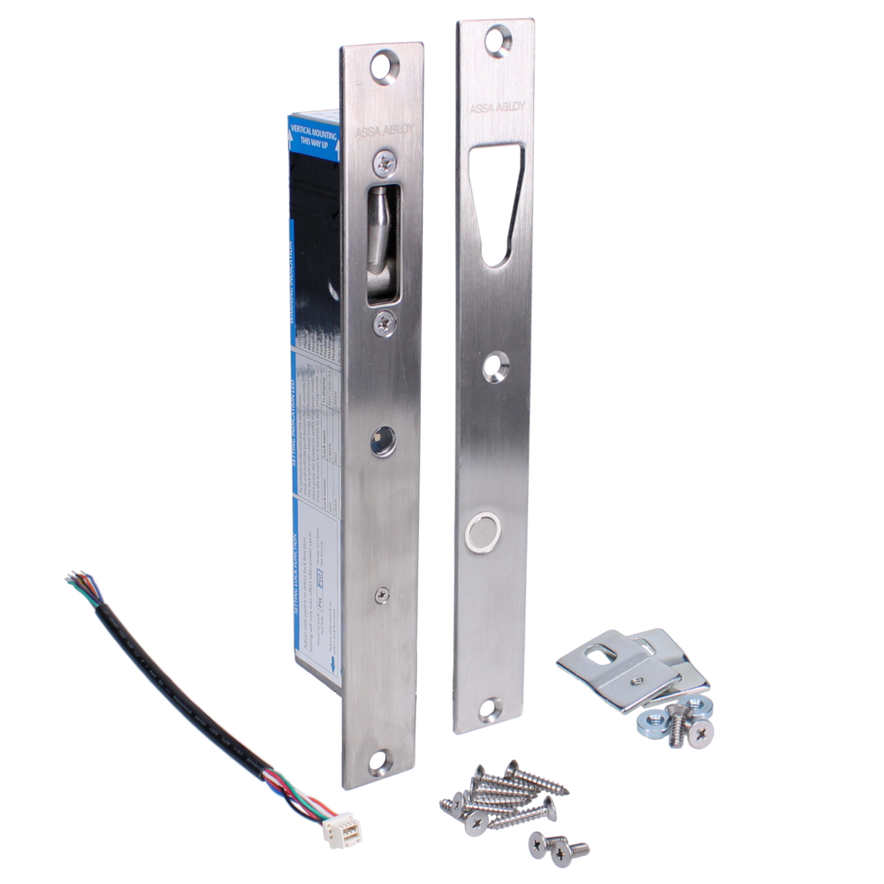

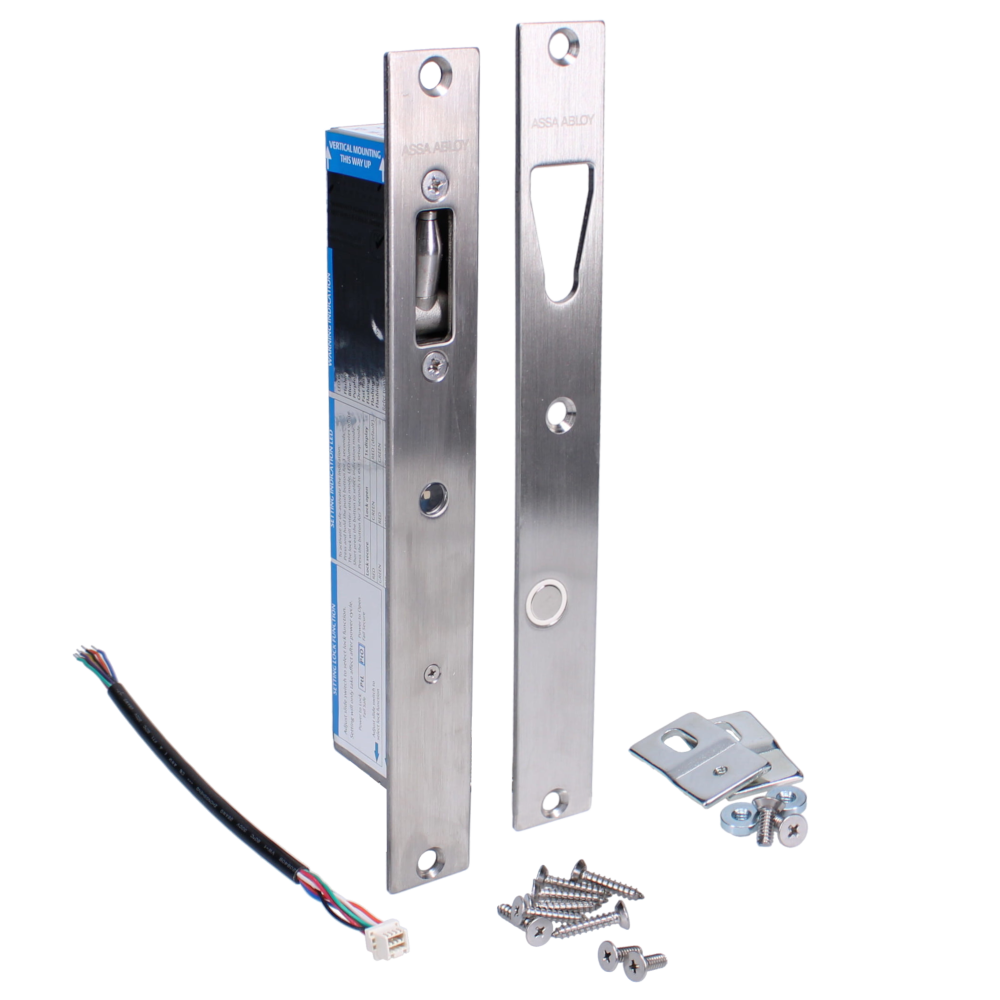

ASSA ABLOY ES8100 V-Lock 12-24VDC PTO/PTL Monitored

ASSA ABLOY ES8100 V-Lock 12-24VDC PTO/PTL Monitored

£1,046.07
£1,046.07
Sale Sold out
Tax included. Shipping calculated at checkout.

Type : Abloy

SKU : L34132

Availability : In Stock

Shipping & Returns

UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.

We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.

Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

View full details
The Assa Abloy ES8100, also known as the V-lock, contains a high torque motorised bolt which moves into a V shaped strike plate, pulling the door into alignment, when locked. The ES8100 can be mounted either vertically or horizontally but cannot be mounted in the floor.

Completely redesigned internally, this new ES8100 V-Lock retains the original footprint of the Trimec ES8000 body and faceplate and is a direct retrofit for it. The ES8100 strike plate utilises the same fixing locations but is 3mm wider to allow a larger misalignment distance of up to 12mm total (+/-6mm).

Key features

  • 1000Kg holding force
  • Door position and lock status monitoring
  • Easy one step field selection between fail safe and fail secure
  • Vertical or horizontal mounting
  • Tested to 500,000 cycles (120N unlocking. 50N locking)
  • Locks under a pre-load of 20Kg (12W) and 35Kg (24W)

Specification

  • Body Height: 210mm
  • Body Width: 24mm
  • Faceplate Height: 256mm
  • Faceplate Width: 30mm
  • Finish: Stainless Steel
  • Handed: Non Handed
  • Input Voltage: 12/24V DC
  • IP Rating: IP53
  • Monitored: true
  • Pack Quantity: 1
  • Standards: UK Conformity Assessed (UKCA),CE Marked
