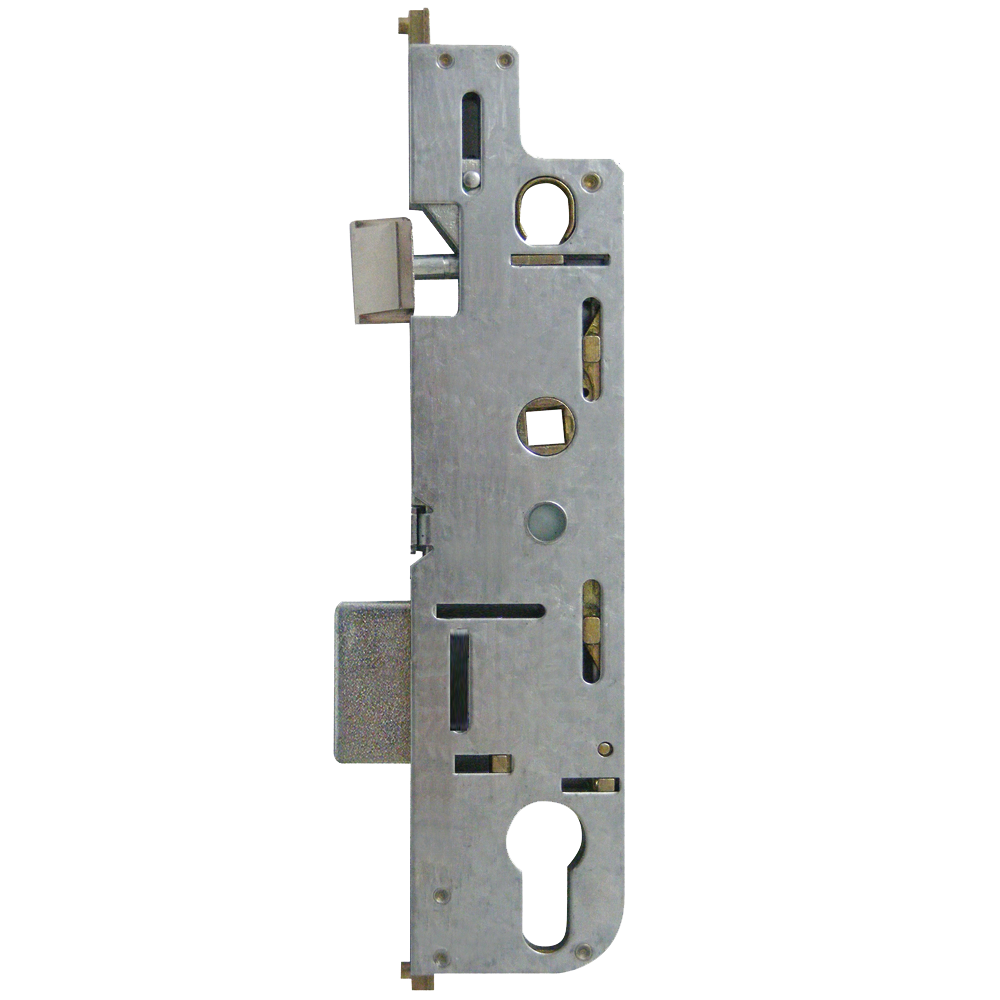

• ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox - 30/92
    ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox - 30/92

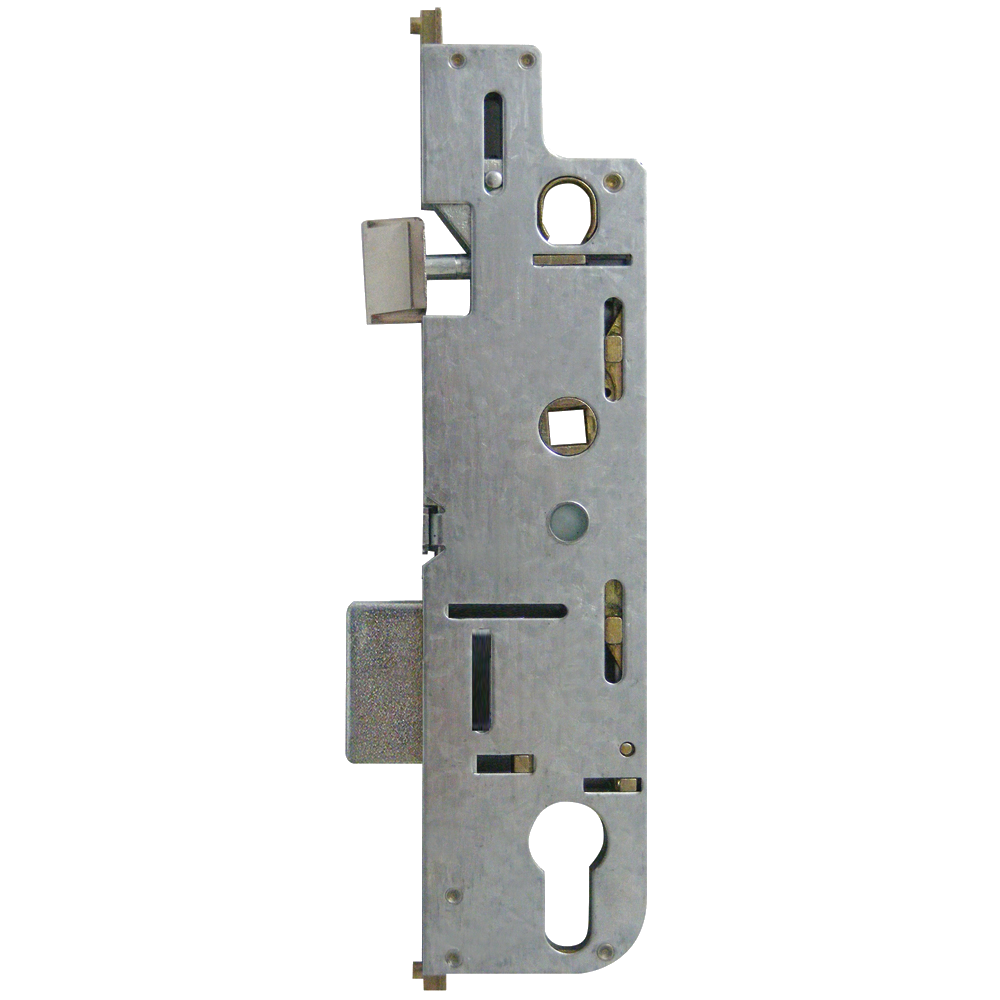

  • ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox - 35/92
    ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox - 35/92
1 2

ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox

ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox

£15.15
£15.15
Sale Sold out
Tax included. Shipping calculated at checkout.

Type : GU

SKU : L24435

Availability : In Stock

Variant

Shipping & Returns

UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.

We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.

Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

View full details
The ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox has a 30mm or 35mm backset with 92mm centres. It is a single spindle latch and deadbolt centre case with a 207mm case height, 45mm or 50mm case width, and a 16mm faceplate width.

This is an ASEC-branded replacement gearbox designed to suit old-style GU multipoint locks with lever-operated latch and deadbolt operation. It provides a direct retrofit option for repair jobs where the existing full-length strip remains serviceable.


Handing
Simply twist the latch to the correct handing before inserting it into the locking strip.

Operation
Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.

Notes
The faceplate screw centres align with older GU multipoint lock strips.

Key features

  • Single Spindle
  • Latch & deadbolt
  • Gearbox Only

Specification

  • Backset: 30mm
  • Case Height: 207mm
  • Case Width: 50mm
  • Centre Case: Latch & Deadbolt
  • Centres: 92mm
  • Faceplate Width: 16mm
  • Pack Quantity: 1
  • Spindle: Single
