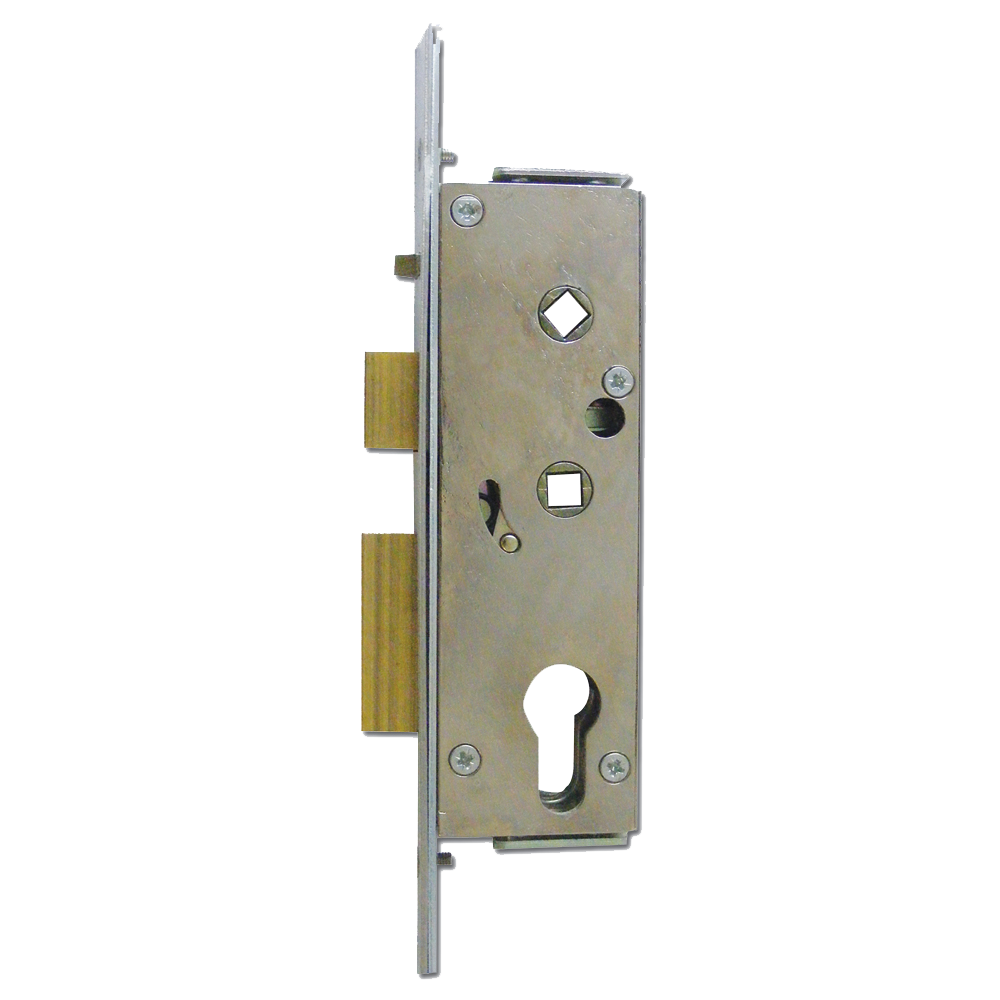

ABT GIBBONS Lever Operated Latch & Deadbolt - Centre Case
ABT GIBBONS Lever Operated Latch & Deadbolt - Centre Case
Regular price
£82.10
Regular price
Sale price
£82.10
Unit price
per
Tax included.
Shipping calculated at checkout.
Type : ABT & Gibbons
SKU : L17749
Availability : In Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.
We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.
Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy
The ABT GIBBONS Lever Operated Latch & Deadbolt Centre Case features a 31mm backset with 85mm and 45mm centres. It is a twin spindle latch and deadbolt centre case with a 146mm case height, 48mm case width, and a 20mm faceplate width.
It also includes an anti-thrust snib, threaded brackets, and a reversible latch bolt.
Identification
There are usually no markings on the faceplate to indicate the manufacturer.
Handing
The latch can be reversed by locating the Allen screw on the side of the lockcase, in line with the latch. Remove the screw, pull out and reverse the latch, then refit the Allen screw.
Operation
Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
Notes
This centre case is commonly used in multipoint locking systems on aluminium or steel doors.
It also includes an anti-thrust snib, threaded brackets, and a reversible latch bolt.
Identification
There are usually no markings on the faceplate to indicate the manufacturer.
Handing
The latch can be reversed by locating the Allen screw on the side of the lockcase, in line with the latch. Remove the screw, pull out and reverse the latch, then refit the Allen screw.
Operation
Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
Notes
This centre case is commonly used in multipoint locking systems on aluminium or steel doors.
Key features
- Reversible Latch Bolt
- 48mm & 85mm Centres
- Threaded Brackets
- Anti-thrust snib
- Euro profile lock case
- Latch & deadbolt
Specification
- Backset: 31mm
- Case Height: 146mm
- Case Width: 48mm
- Centre Case: Latch & Deadbolt
- Centres: 85mm & 45mm
- Faceplate Width: 20mm
- Finish: Nickel Plated
- Spindle: Twin
