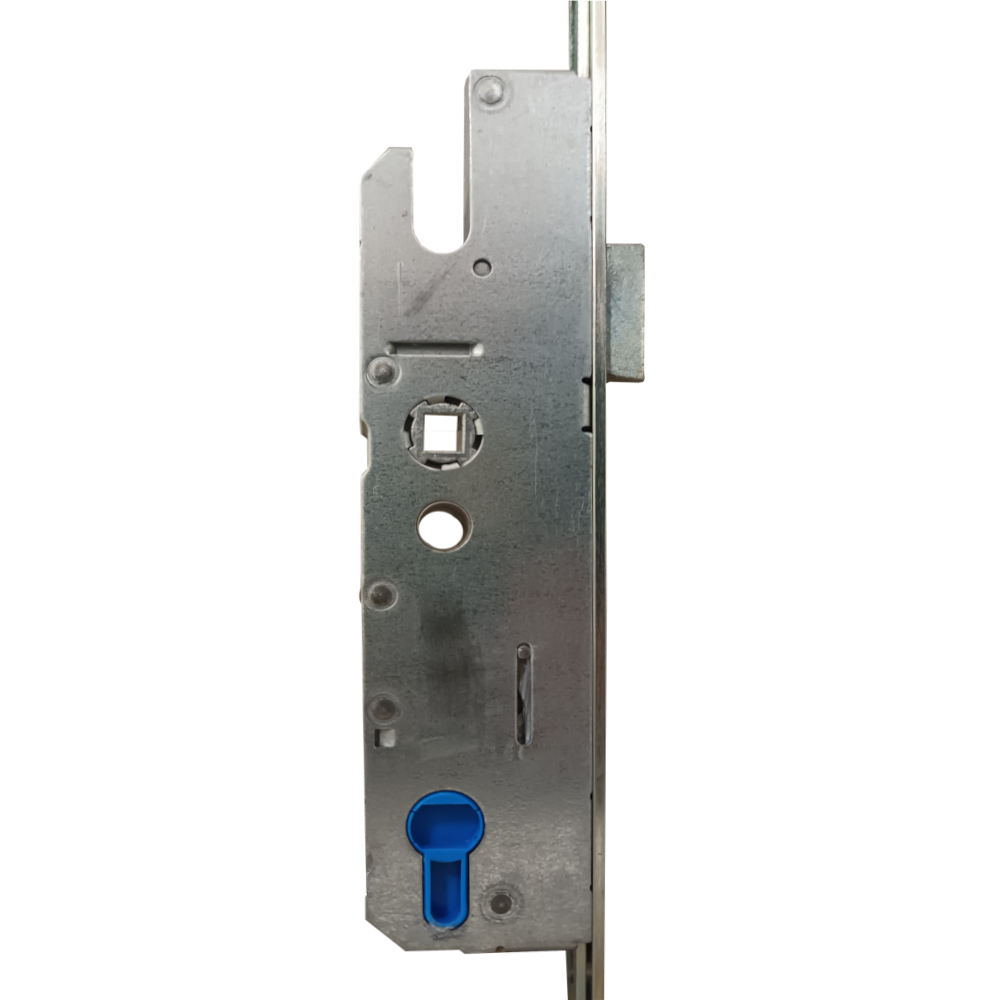

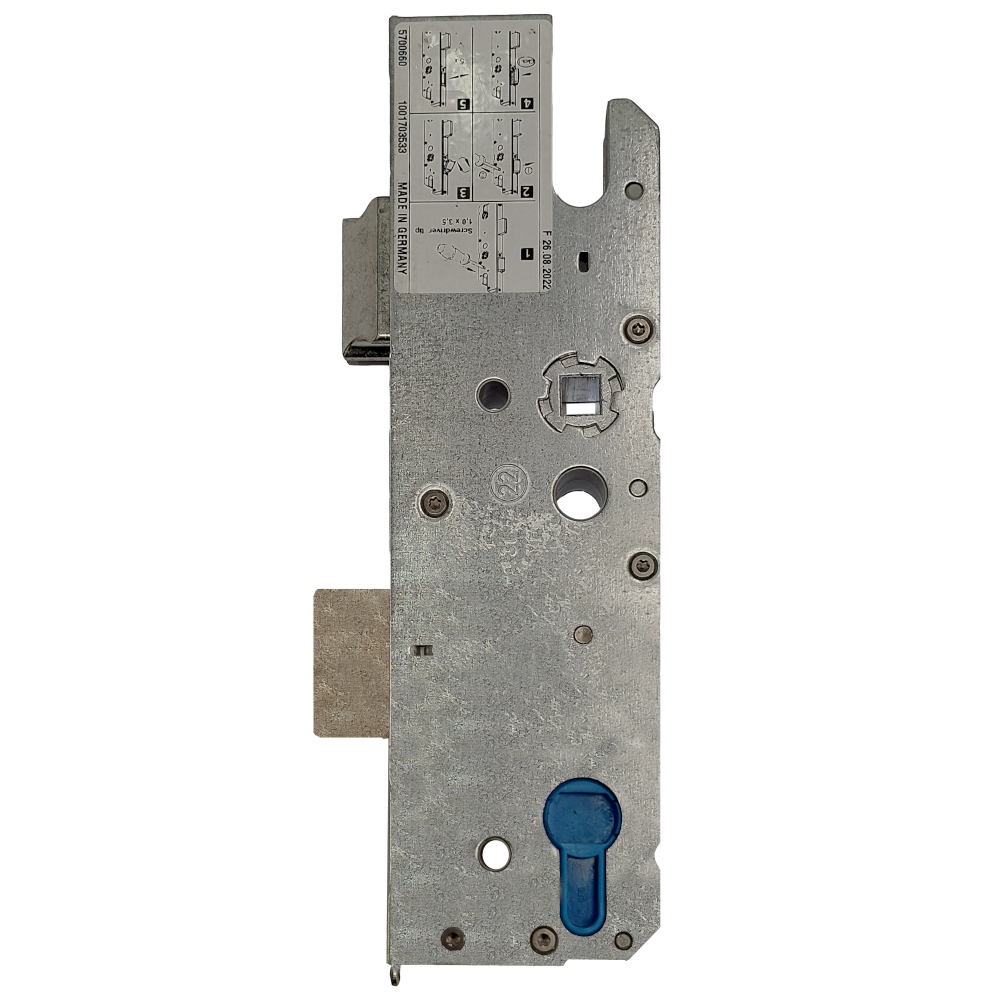

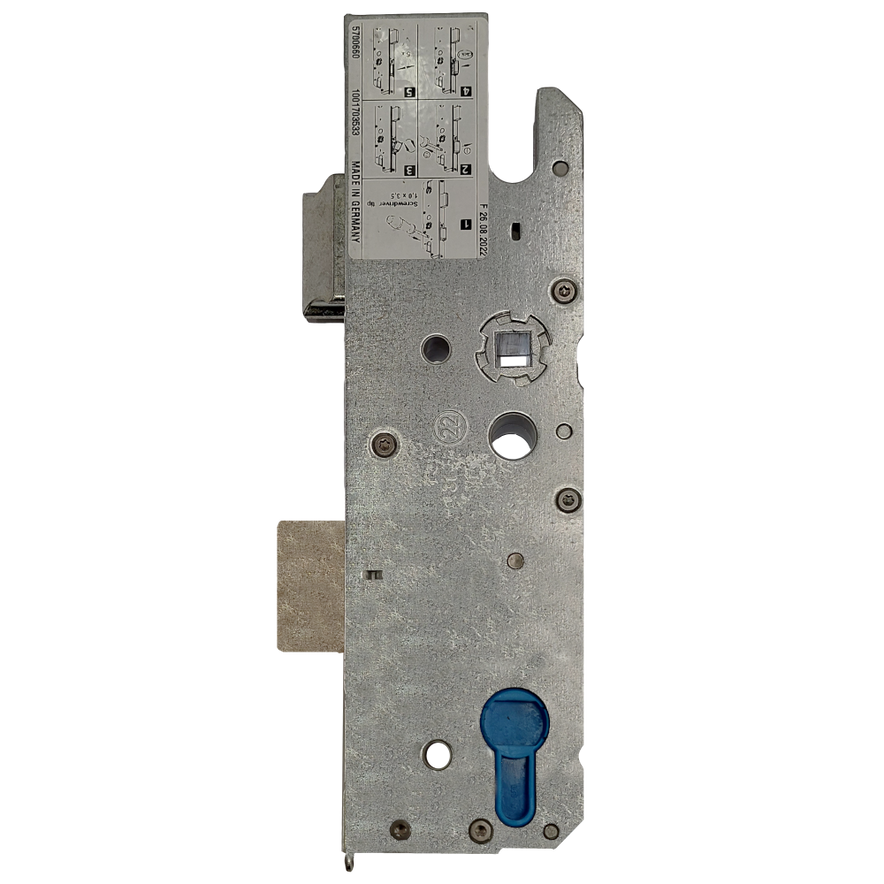

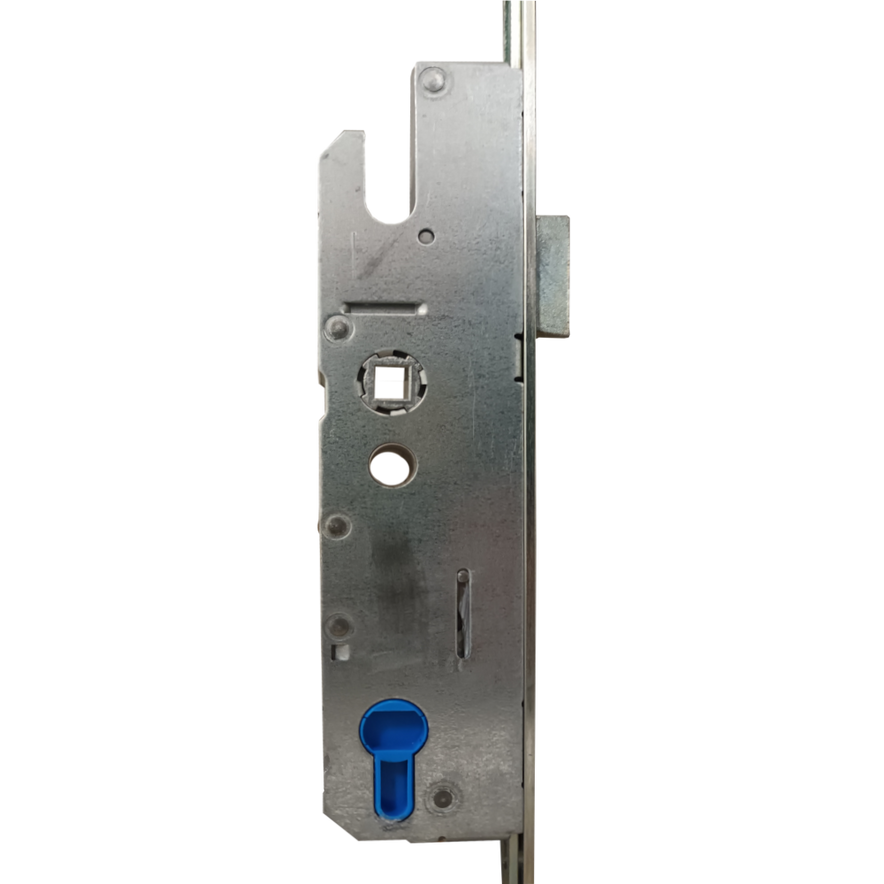

KFV Key Operated Latch & Deadbolt Gearbox
KFV Key Operated Latch & Deadbolt Gearbox
Regular price
£211.13
Regular price
Sale price
£211.13
Unit price
per
Tax included.
Shipping calculated at checkout.
Type : KFV
SKU : L21826
Availability : In Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.
We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.
Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy
The KFV Key Operated Latch & Deadbolt Gearbox has 35mm or 45mm backset, 92mm centres, is single spindle, latch & deadbolt centre case, 210mm case height and has 50mm or 60mm case width.
Early KFV multipoint locks used different rivet spacing and connectors to attach the gearbox to the strip. This is not an issue when replacing the complete lock, but it is important to note if you only need a gearbox, as the latest versions will not suit very early models. Current KFV locks are supplied with the gearbox fixed to the faceplate using screws for easier replacement.
This gearbox is suitable for KFV key wind mechanisms.
Handing
The latch can be reversed by locating the screw on the side of the lockcase, in line with the latch. Pull out and reverse the latch, then refit the screw in the side.
Operation
Locking Method - C. Two full turns of the key to lock and then two full turns of the key to unlock. An extra turn withdraws the latch.
Early KFV multipoint locks used different rivet spacing and connectors to attach the gearbox to the strip. This is not an issue when replacing the complete lock, but it is important to note if you only need a gearbox, as the latest versions will not suit very early models. Current KFV locks are supplied with the gearbox fixed to the faceplate using screws for easier replacement.
This gearbox is suitable for KFV key wind mechanisms.
Handing
The latch can be reversed by locating the screw on the side of the lockcase, in line with the latch. Pull out and reverse the latch, then refit the screw in the side.
Operation
Locking Method - C. Two full turns of the key to lock and then two full turns of the key to unlock. An extra turn withdraws the latch.
Key features
- To suit KFV Key Wind
- Euro Profile Lock Case
- Latch & Deadbolt
Specification
- Backset: 45mm
- Case Height: 210mm
- Case Width: 60mm
- Centre Case: Latch & Deadbolt
- Centres: 92mm
- Spindle: Single
