ASGARD Copy Lever Operated Twin Spindle Latch & Hookbolt Gearbox

Browse replacement multipoint lock gearboxes and centre cases at BH Locks, including original-brand parts and compatible replacements identified in their product titles.

Match your existing mechanism’s brand, model, dimensions and operation to the product specification. Check compatibility carefully before ordering; a similar appearance alone does not confirm a fit.

If you need a full locking mechanism, browse complete multipoint locks. For other replacement options, see multipoint repair locks.

How to identify a replacement gearbox

Compare the brand and model markings, backset, handle centres (PZ), case dimensions and spindle arrangement with the listing. Backset is measured from the faceplate to the spindle centre; PZ is measured between the handle spindle centre and cylinder centre.

A gearbox must also be compatible with the rest of the locking strip. Email photographs and measurements to sales@bhlocks.co.uk before ordering if you are unsure.

Need help choosing? Contact BH Locks with your existing product’s brand, model and measurements before ordering.

Delivery to UK addresses only: £7.80 on orders below £60, or free on orders of £60 or more. Delivery details · Returns information.

1 2

ASGARD Copy Lever Operated Twin Spindle Latch & Hookbolt Gearbox

Name: ASGARD Copy Lever Operated Twin Spindle Latch & Hookbolt Gearbox
Brand: Aldridge
SKU: L24532
Price: 46.24 GBP
Availability: InStock

£46.24

Sale Sold out

Tax included. Shipping calculated at checkout.

Type : Fix

SKU : L24532

Availability : In Stock

Variant 45/92-70 35/92-70

Product variants

Quantity

Shipping & Returns

UK delivery only. Delivery is £7.80 on orders of £59.99 or less and free on orders of £60 or more.

We aim to dispatch orders placed before 5:00 pm on a working day the same day. Orders placed later, at weekends or on bank holidays will normally be dispatched the next working day. Delivery is typically one working day after dispatch.

Change-of-mind returns are accepted within 14 days of receipt, provided the goods are unused, uninstalled, complete and in a sellable condition. The customer arranges and pays return postage. Full shipping policy · Full returns policy

View full details

Description

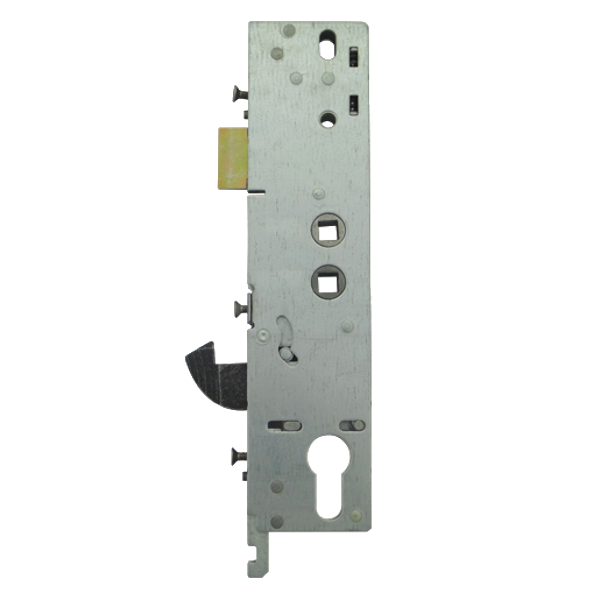

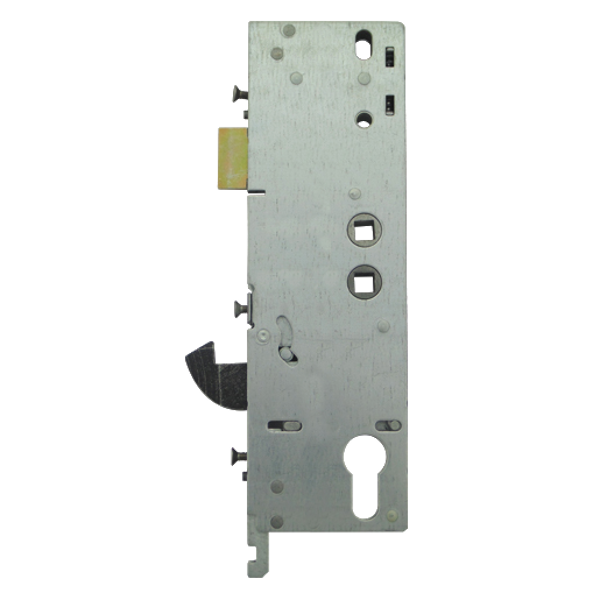

The ASGARD Copy Lever Operated Twin Spindle Latch & Hookbolt Gearbox has a 35mm or 45mm backset with 92mm and 70mm centres. It is a twin spindle latch and hookbolt centre case with a 210mm case height and a 50mm case width.

This is a copy gearbox designed to suit Yale and Asgard locks.

Identification
Look for the distinctive Asgard style case shape with a 226mm faceplate screw centre and 92mm and 62mm split spindle centres. The gearbox has a flat rounded end faceplate section and a single hookbolt positioned below the latch.

Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.

Operation
Locking Method – A: Lift the lever to engage locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.

Notes
Suitable for aluminium doors with lever handle operation, offering a simple retrofit option where only the centre case needs replacing.

Key features

To suit Yale & Asgard Locks
Euro Profile Lock Case
Latch & Hookbolt
Twin spindle
Copy gearbox

Specification

Backset: 45mm
Case Height: 210mm
Case Width: 50mm
Centre Case: Latch & Hookbolt
Centres: 92mm & 70mm
Spindle: Twin
