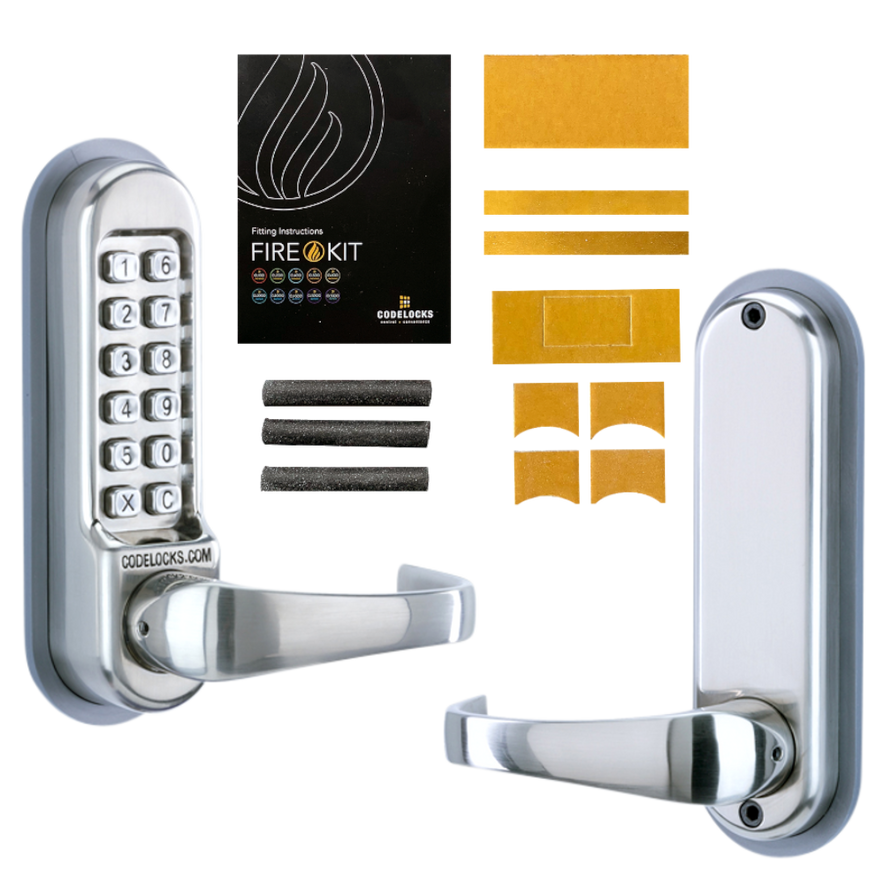

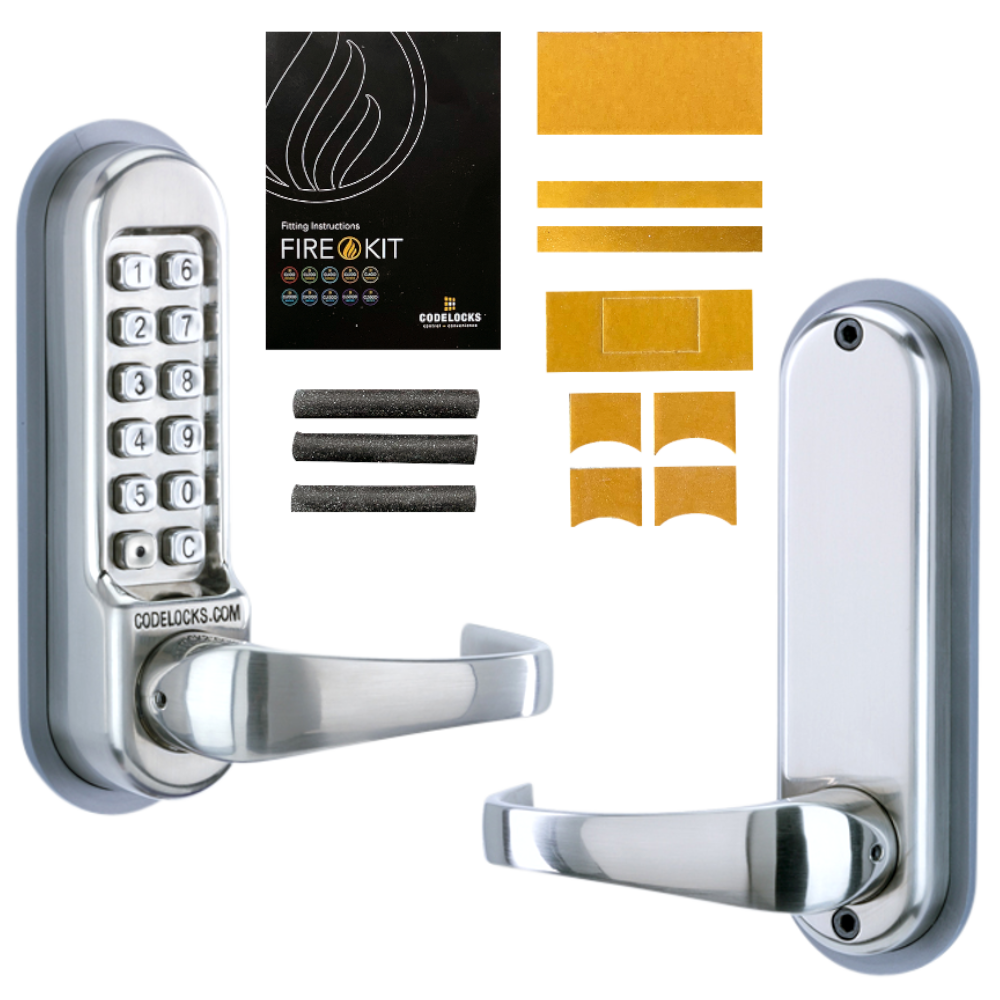

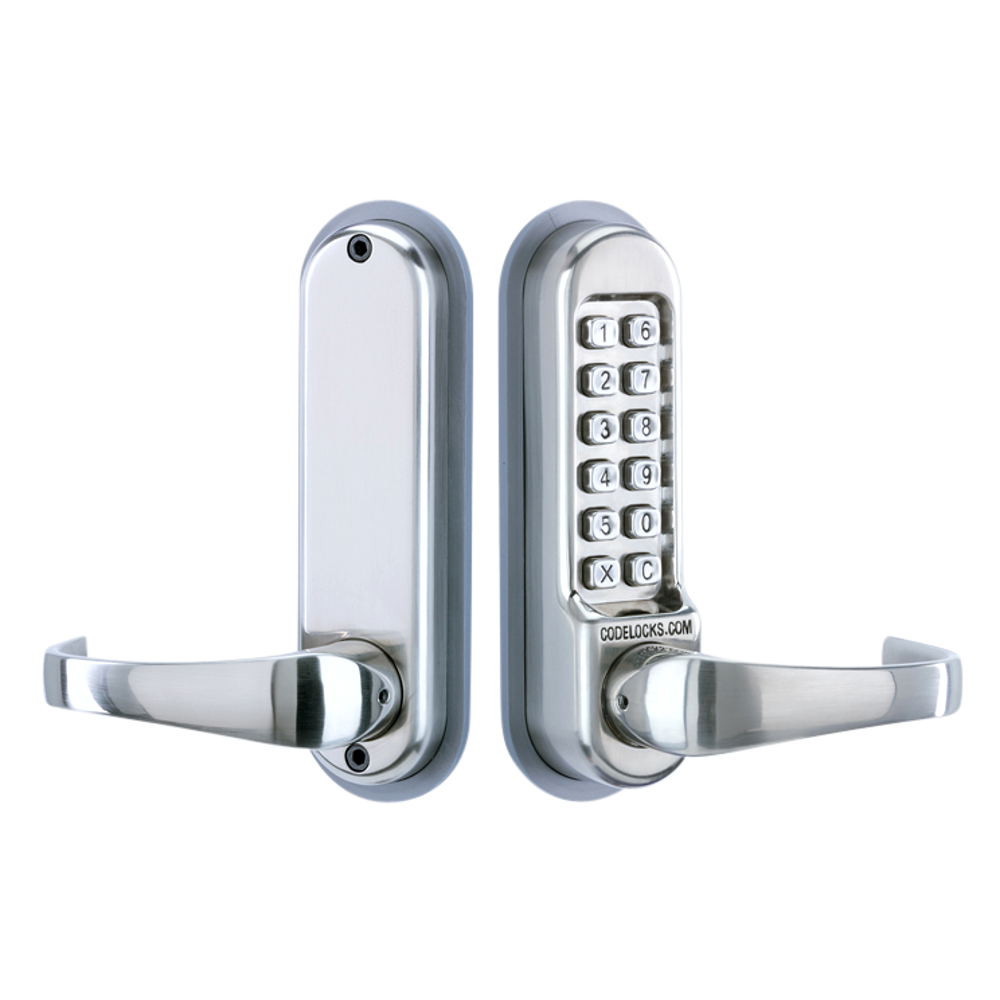

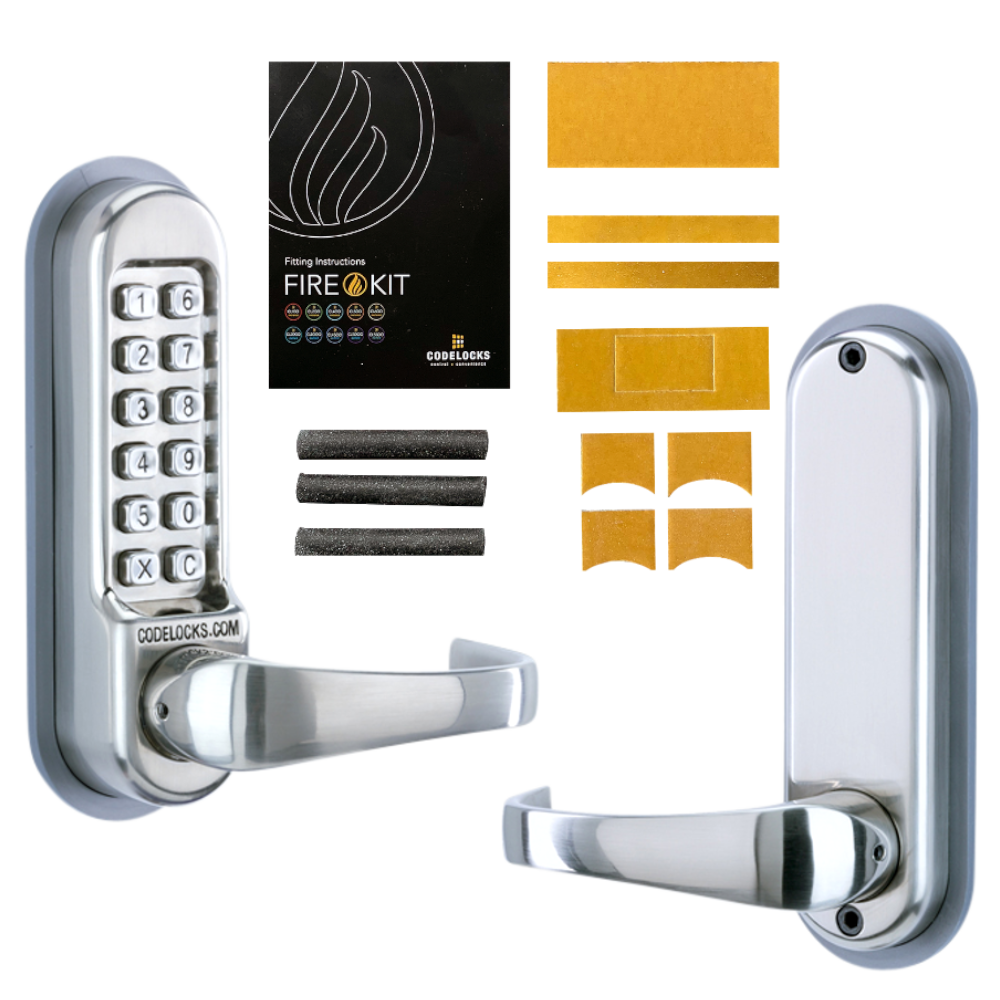

The CL510 and CL515 have a heavy duty tubular mortice latch, and the CL515 has the option of a code free entry facility. The outside lever handle will retract the latch after a correct code is entered, the spring loaded latchbolt will lock automatically when the door is closed. These products are suitable for use on FD30 and FD60 fire doors, to achieve the fire rating these digital locks must be fitted with the appropriate intumescent pack, please see associated products.

Clean by Codelocks is an optional finish available to special order on many Codelock products. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation. Clean by Codelocks features an ISO certified photocatalytic coating which offers enhanced protection against viruses, bacteria, germs and other environmental toxins. For full details please view the data sheet in the associated documents or to order please contact our Specials Department.

IMPORTANT:
Before ordering a Codelocks front/back plate set for use on an existing lock case, the current lock case must be tested to ensure it is compatible. Please see the 3rd Party Lock Disclaimer PDF document below for full information.

Key features

• 8mm square spindle
• Non handed units
• Heavy duty codelock for internal and external use
• Weather resistant PVD
• CL515 features a Dot button instead of the X button to allow free passage option
• Available with knob handles as special order

Specification

• Backset: 60mm
• Width: 48mm
• Door Thickness: 35mm to 65mm
• Finish: Stainless Steel
• Fire Tested: 1 Hour
• Guarantee: Limited Lifetime
• Handed: Reversible
• Holdback: No
• Key Override: No
• Pack Quantity: 1
• Packaging: Boxed
• Weather Resistant: true
